MLF-191A-CGC - Datasheet
MBA
Category Information

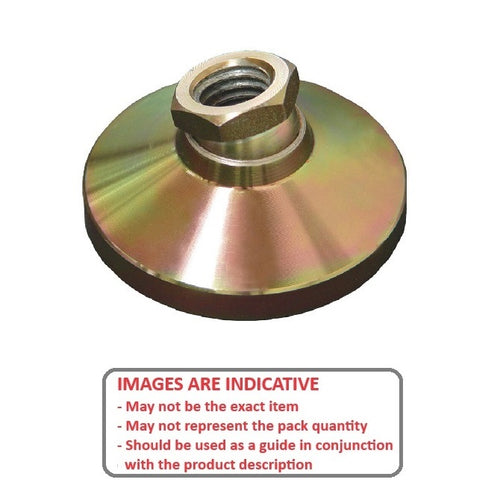

Mounts - Levelling Socket - Swivel - Acme Thread - Gold ChromateGold Chromate Acme Thread Swivel Levelling Socket Mounts. Levelling adjusters. Use acme thread to make a custom stud.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 3/4-6 (19.1 mm)
- Base Diameter (D)
76.2
mm
(Equiv. 3 in.) - Foot Height (C)
38.1
mm
(Equiv. 1.5 in.) - Min. Thread Depth 19.1 mm
- Load Rating 5030 Kg
- Gold Chromate
- Hex Flats (E) 26.98 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLF5030191AG
- ACM190
- ACM-190
