MLM-064C-038-S3 - Datasheet
MBA
Category Information

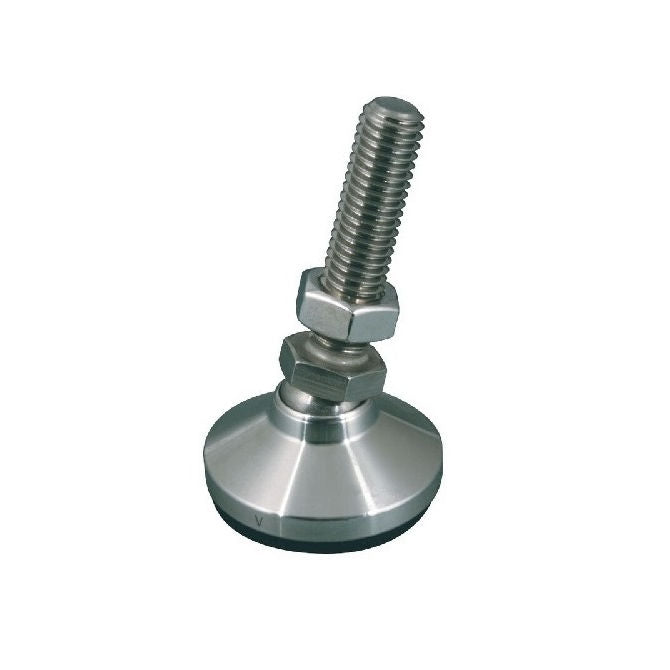

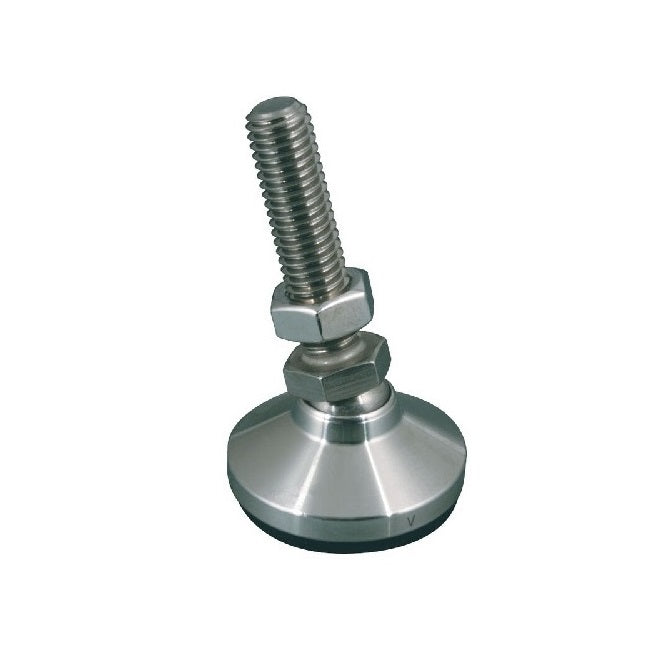

Mounts - Levelling Studded - Standard - 303 Stainless303 Stainless Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. 303 stainless steel.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data

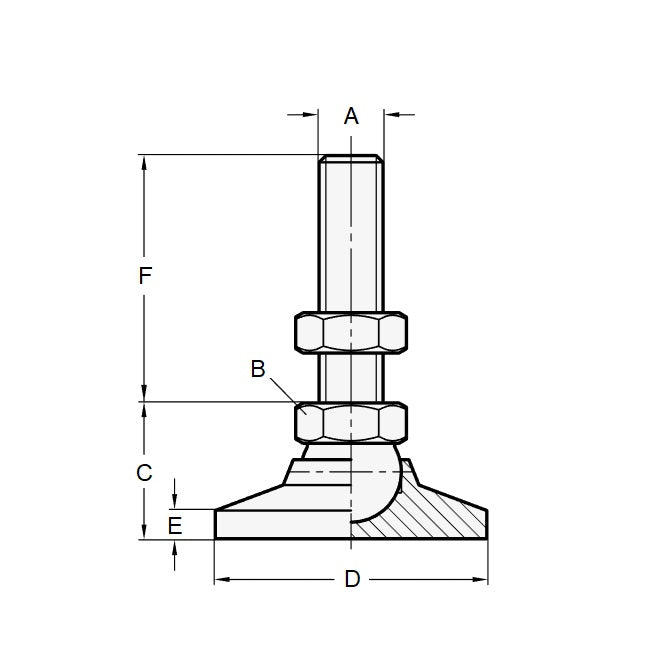

- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.9
mm
(Equiv. 0.705 in.) - Thread Length (F) 38.1 mm
- Base Height (E) 3.97 mm
- Overall Height 56.0 mm
- Load Rating 500 Kg
- Hex Flats (B) 12.700 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MLM0500064CS3
- HVTL15SS
- HVTL-15SS
