MLM-064C-032-CNP - Datasheet
MBA
Category Information

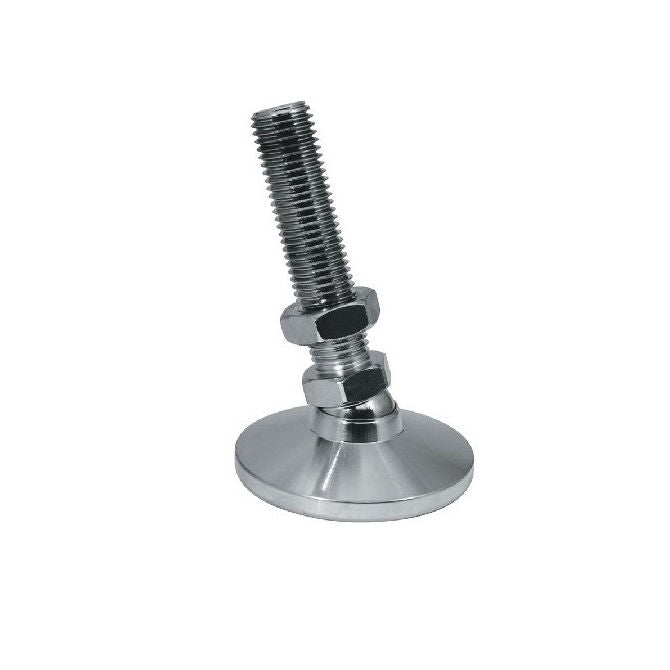

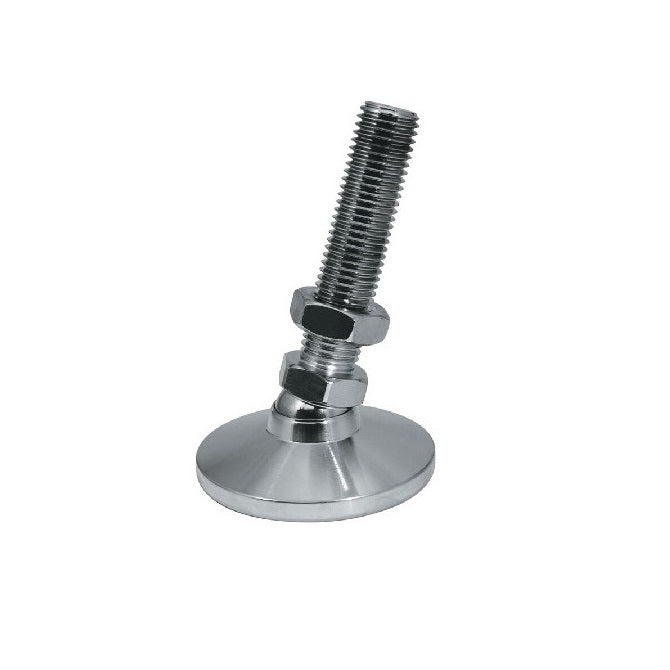

Mounts - Levelling Studded - Standard - PlatedPlated Standard Levelling Studded Mounts. Levelling adjusters. Good quality with value pricing. Hardened ball for high load ratings and excellent wear characteristics.
- An expanded range may be available on special order. Please enquire.
- Large diameter base for added support.
- 15o off centre swivel for quick leveling on sloped surfaces.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.9
mm
(Equiv. 0.705 in.) - Thread Length (F) 31.8 mm
- Base Height (E) 3.97 mm
- Overall Height 49.7 mm
- Load Rating 500 Kg
- Finish Nickel Plated
- Hex Flats (B) 12.700 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM0500064CNP
- HVTL-0N
- HVTL0N
