CNG-00595-CZ - Datasheet
MBA
Category Information

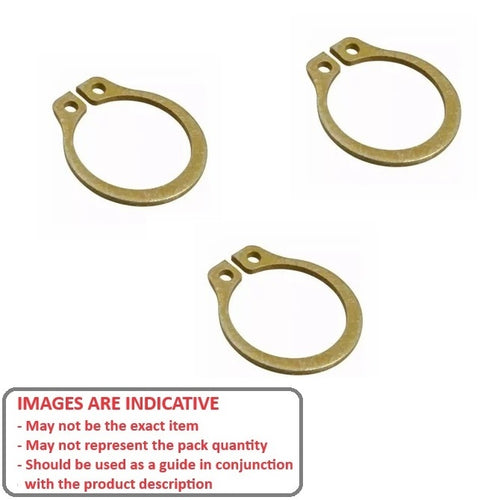

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.
Product Data

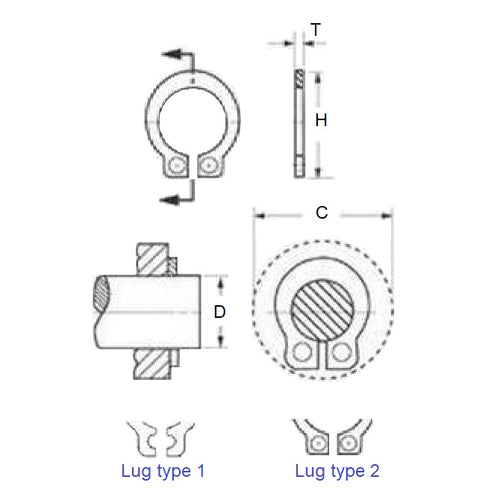

- Shaft Diameter (Ds)
:
5.95
mm
(Equiv. 0.234 in.) - Clip Thickness (T)
0.99
mm
(Equiv. 0.039 in.) - Approx. Loose Circlip ID (A) 5.690 mm
- Assemb. Clearance on Shaft (C) 12.70
- Allowable Load 142 N
- Lug Type 1 (Open) mm
- Tool PRS-E047-X
- Material Carbon Steel Zinc Plated Yellow
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHF-023-ZD
- SHF023ZD
