PLST-159C-270-AS-038 - Datasheet
MBA
Category Information

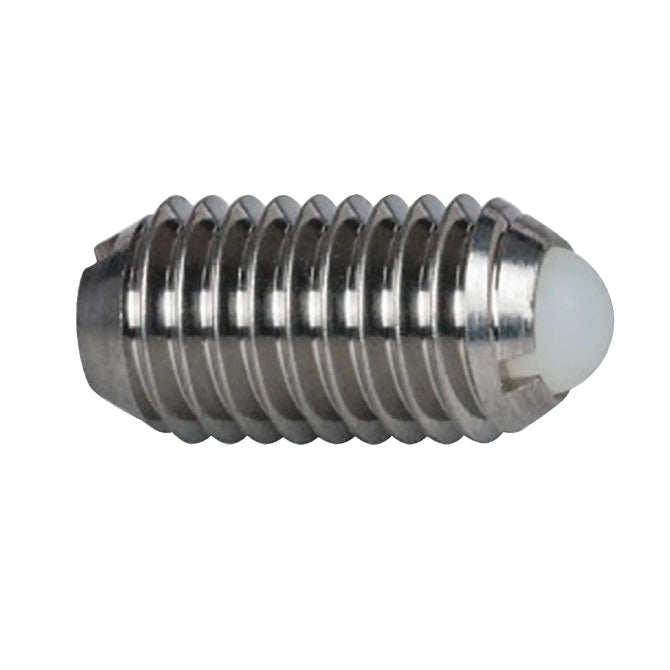

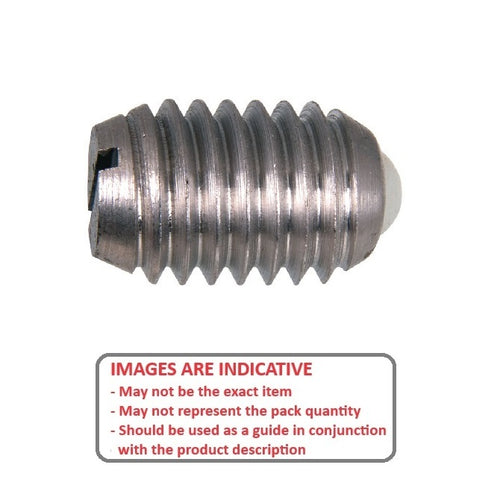

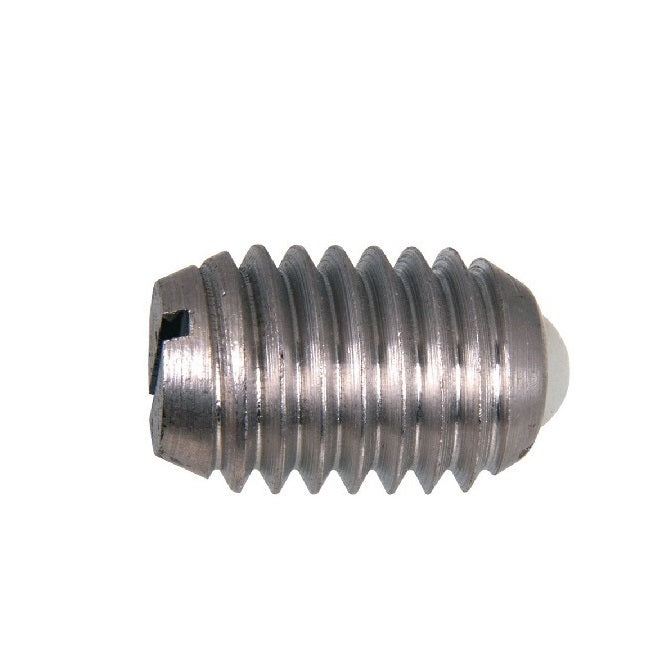

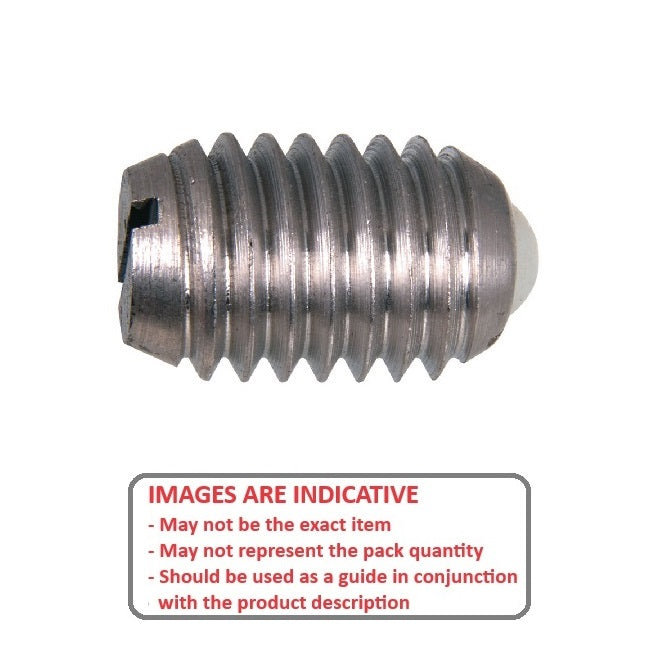

Plungers - Spring - No Handle - Stainless - Acetal NoseAcetal Nose Stainless No Handle Spring Plungers. 303 Stainless Steel body and acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

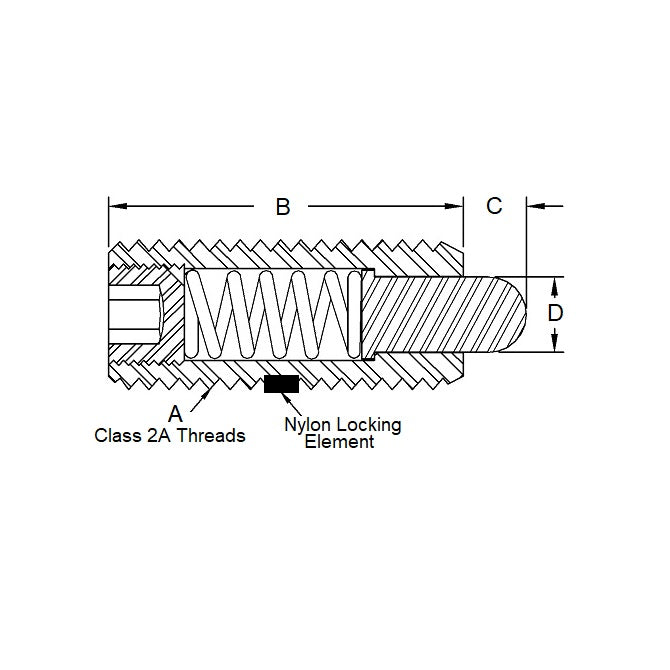

- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Thread Length (B)
27.0
mm
(Equiv. 1.063 in.) - Initial Pressure (F1) 8.9 N
- Final Pressure (F2) 37.8 N
- Tip Diameter (D) 7.9 mm
- Tip Length (C) 5.5 mm
- Body Length (B) 27.0 mm
- Drive Slotted
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- 84765A117
- LNK7S
- LNK-7S
