PLST-159C-318-CLG-013 - Datasheet

MBA

Category Information

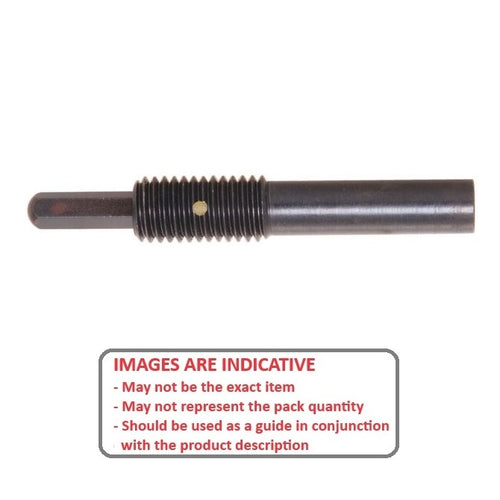

Plungers - Spring - No Handle - Steel - Long Stroke

Long Stroke Steel No Handle Spring Plungers. With Long-Lok thread locking compound to prevent loosening

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

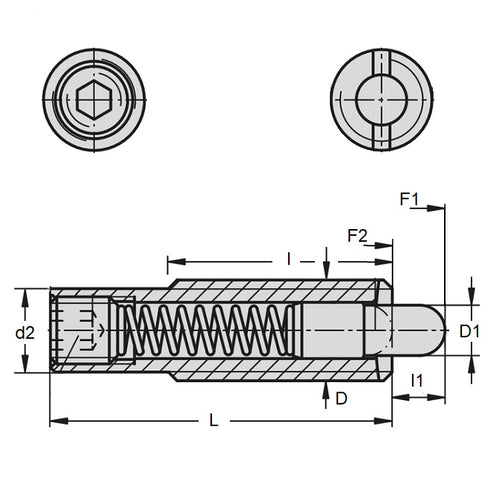

  • Thread Size (D) : 5/8-11 UNC (15.88mm)
  • Body Length (L) 31.8 mm
  • Initial Pressure (F1) 16 N
  • Final Pressure (F2) 80.0 N
  • Tip Diameter (D1) 7.9 mm
  • Tip Length (l1) 25.4 mm
  • 79.4
  • Material Steel
Country of Origin: US
