PLST-159C-254-TASL-010 - Datasheet
MBA
Category Information

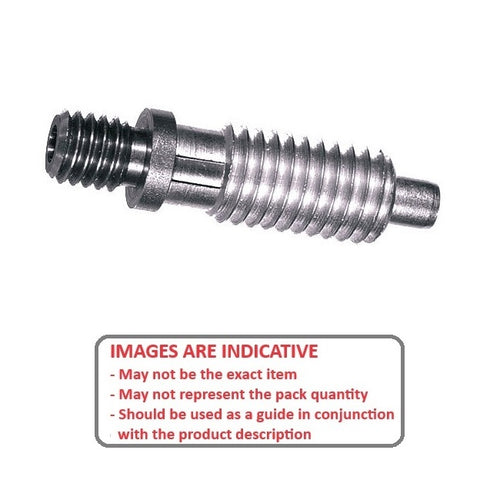

Plungers - Spring Threaded Adapter - Locking - StainlessStainless Locking Spring Threaded Adapter Plungers. Use your own handle on the thread provided.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

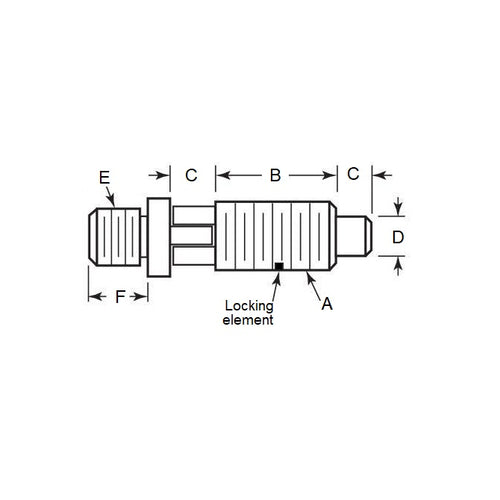

Product Data
- Body Thread Size (A) : 5/8-11 UNC (15.88mm)
- Body Thread Length (B)
25.4
mm
(Equiv. 1 in.) - Initial Pressure (F1) 5.0 N
- Final Pressure (F2) 10.0 N
- Tip Diameter (D) 7.9 mm
- Tip Length (C) 7.9 mm
- End Thread Size (E) 1/2-13 UNC (12.7mm)
- End Thread Length (F) 11.1 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- NRP32
- NRP-32
