PLST-159C-775-HLCL-022 - Datasheet

MBA

Category Information

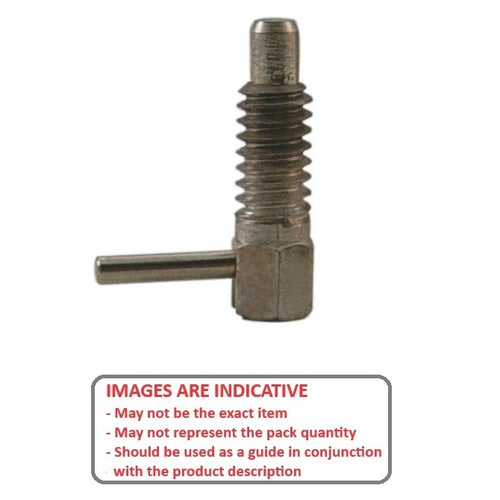

Plungers - Spring - L Handle - Locking - Steel

Steel Locking L Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.

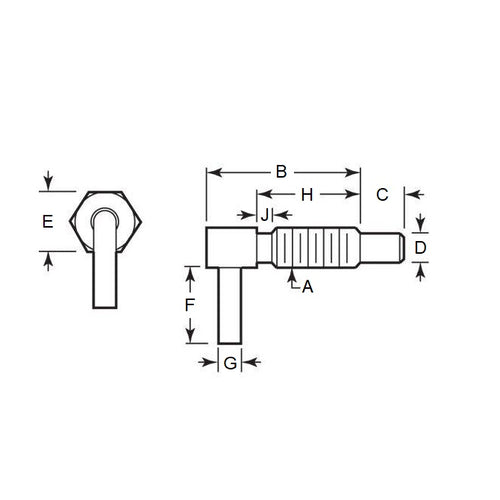

Product Data

  • Thread Size (A) : 5/8-11 UNC (15.88mm)
  • Thread Length (B) 47.5 mm
    (Equiv. 1.87 in.)
  • Initial Pressure (F1) 4.5 N
  • Final Pressure (F2) 22.2 N
  • Tip Diameter (D) 9.7 mm
  • Tip Length (C) 25.4 mm
  • Body Length (B) 77.5 mm
  • Handle Diameter (G) 4.8 mm
  • Handle Length (F) 25.4 mm
  • J 3.3
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 3403A18
  • Nachi FR6-2RS
  • Nachi FR6-RS
  • FR-62
  • FR62
