PLST-159C-270-C-222 - Datasheet
MBA
Category Information

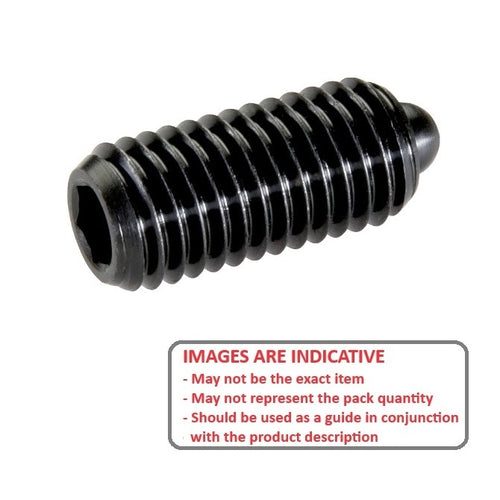

Plungers - Spring - No Handle - Steel - Standard NoseStandard Nose Steel No Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
Product Data

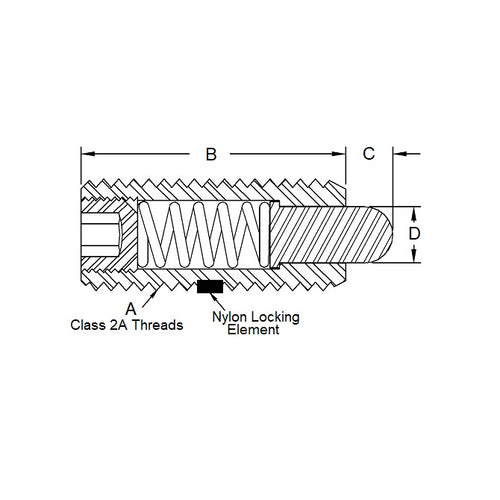

- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Thread Length (B)
27.0
mm
(Equiv. 1.063 in.) - Initial Pressure (F1) 31.1 N
- Final Pressure (F2) 222.4 N
- Tip Diameter (D) 7.9 mm
- Tip Length 5.5 mm
- Body Length (B) 27.0 mm
- Drive Slotted
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 3126A281
- K7
- K-7
