PLST-159C-320-PC-045 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Steel - Plastic Nose

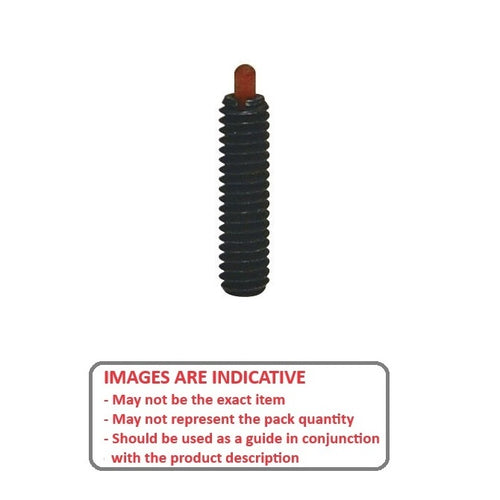

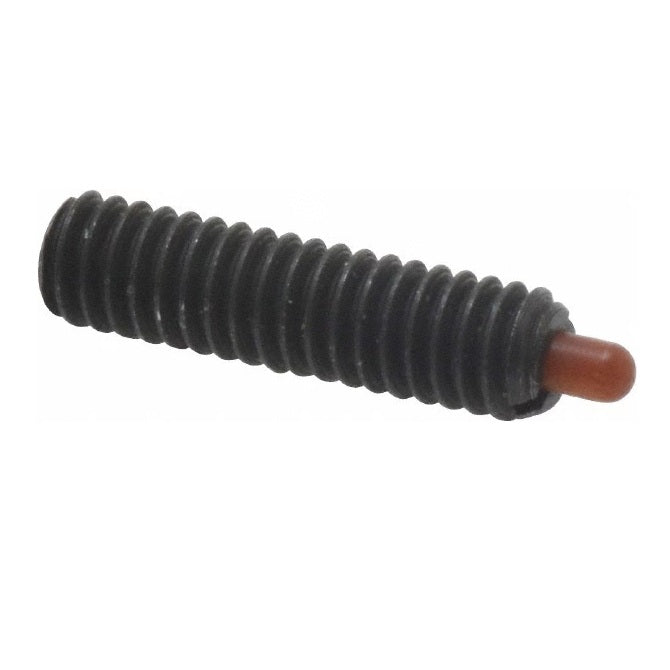

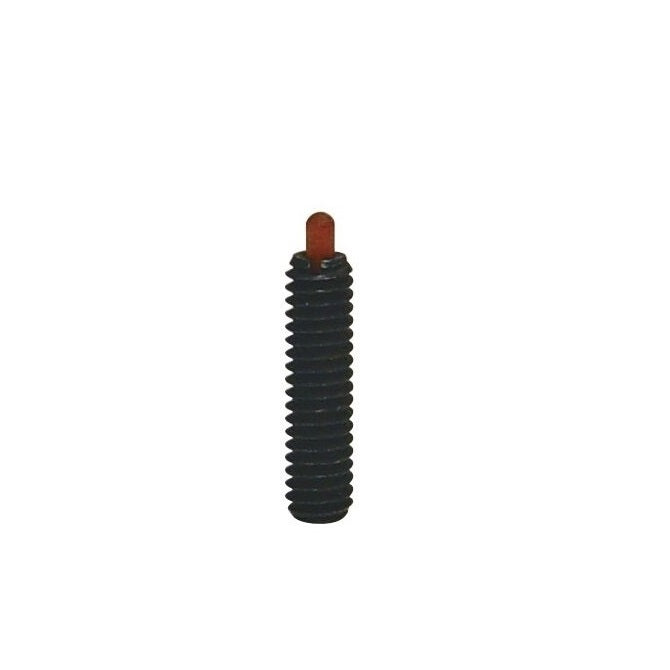

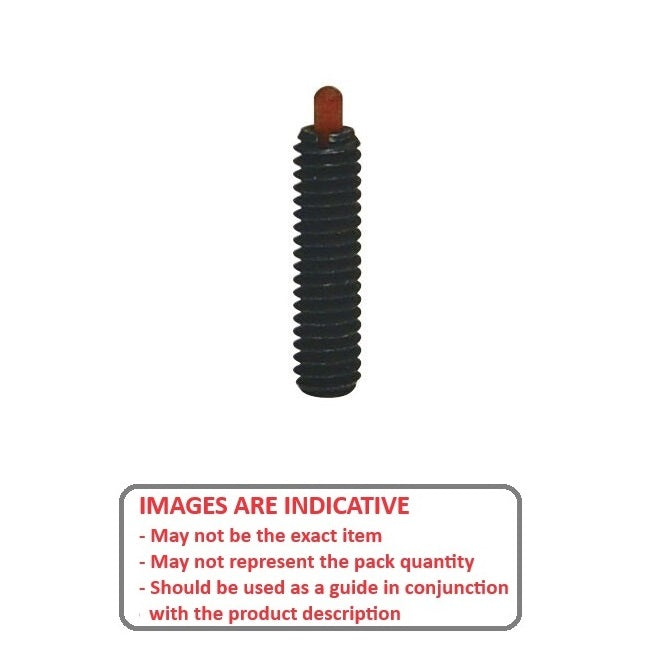

Plastic Nose Steel No Handle Spring Plungers. Plastic nose with steel body

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

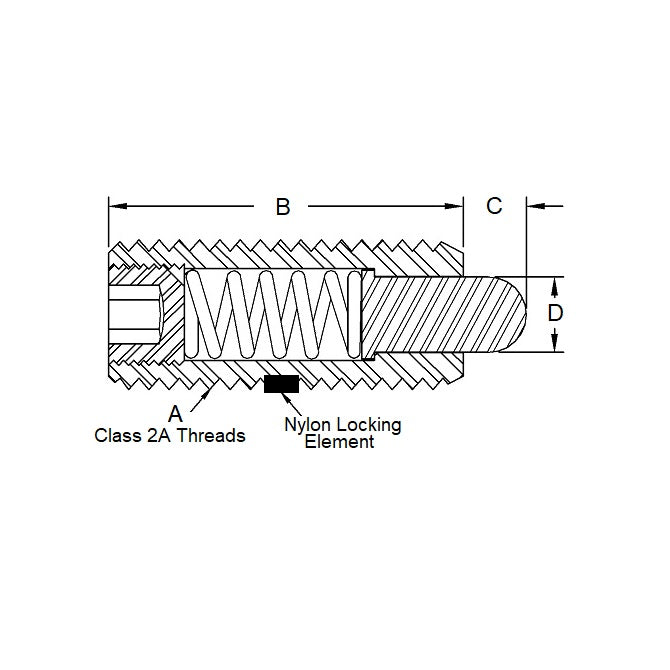

  • Thread Size (A) : 5/8-11 UNC (15.88mm)
  • Thread Length (B) 32.0 mm
    (Equiv. 1.26 in.)
  • Initial Pressure (F1) 20.0 N
  • Final Pressure (F2) 45.0 N
  • Tip Diameter (D) 7.6 mm
  • Tip Length (C) 5.1 mm
  • Body Length (B) 32.0 mm
  • Drive 4.76mm Hex
  • Material Steel Body with Plastic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KBP-78
  • KBP78
