SC159C-114-C-SK-CZ - Datasheet
Brighton Best
Category Information

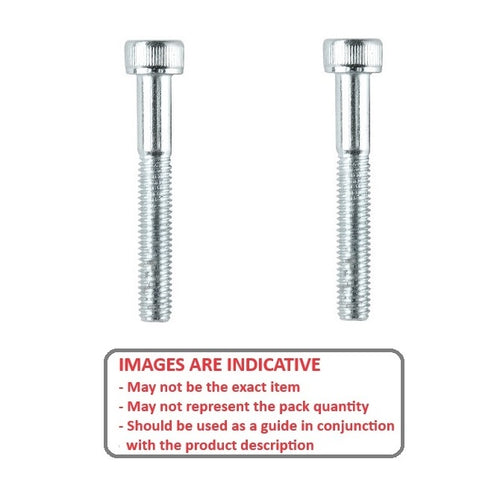

Screws - Socket Cap - Zinc PlatedZinc Plated Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 5/8-11 UNC (15.88mm)
- Thread Length (L)
114.3
mm
(Equiv. 4.5 in.) - Material Zinc Plated Steel
- Head Length (B Max.) 15.9 mm
- Head Diameter (A Max.) 23.8 mm
- Drive Depth (E) 7.80 mm
- Shank Diameter (C) 15.65 - 15.88 mm
- Hex Key (D) 12.70 (1/2) mm
- Pitch 2.309 mm
- Threads Per Inch 11 TPI
- Min thread Length 44.5 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 872433
- 90128A528
