PLST-159C-605-HTSL-022 - Datasheet
MBA
Category Information

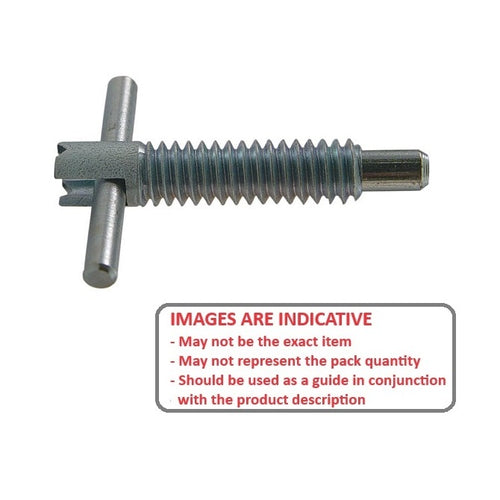

Plungers - Spring - Tee Handle - Locking - StainlessStainless Locking Tee Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.

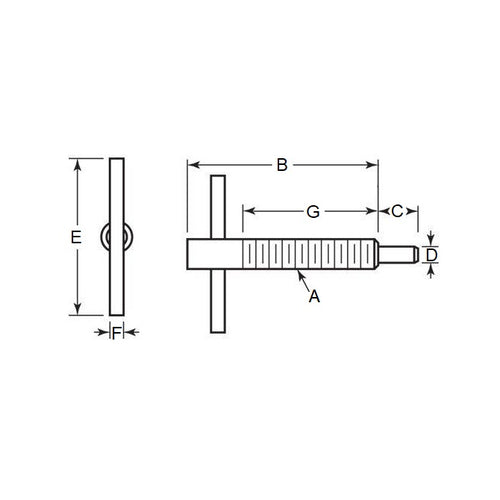

Product Data
- Thread Size (A) : 5/8-11 UNC (15.88mm)
- Thread Length (B)
43.2
mm
(Equiv. 1.701 in.) - Initial Pressure (F1) 11.1 N
- Final Pressure (F2) 22.2 N
- Tip Diameter (D) 9.5 mm
- Tip Length (C) 15.9 mm
- Overall Length (B) 60.5 mm
- Handle Thickness (F) 4.8
- Thread Length (G) 43.2 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 31265A86
- SSFRT62
- SSFRT-62
