PLST-079C-201-PC-009 - Datasheet
MBA
Category Information

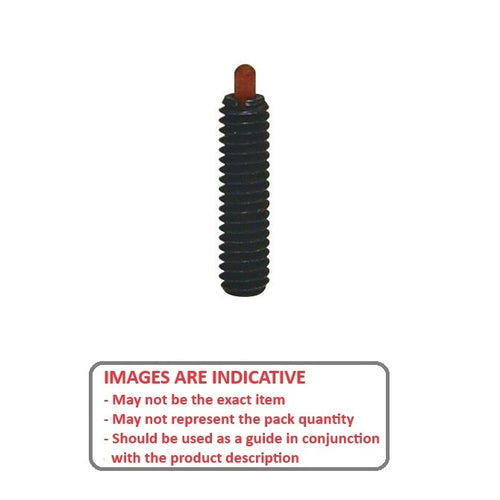

Plungers - Spring - No Handle - Steel - Plastic NosePlastic Nose Steel No Handle Spring Plungers. Plastic nose with steel body
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (B)
20.1
mm
(Equiv. 0.791 in.) - Initial Pressure (F1) 3.0 N
- Final Pressure (F2) 9.0 N
- Tip Diameter (D) 2.8 mm
- Tip Length (C) 2.5 mm
- Body Length (B) 20.1 mm
- Drive 1.98mm Hex
- Material Steel Body with Plastic
Product Compliance and Data
Additional Resources
Cross References
- KBP-73
- KBP73
