PLST-079C-254-AS-067 - Datasheet
MBA
Category Information

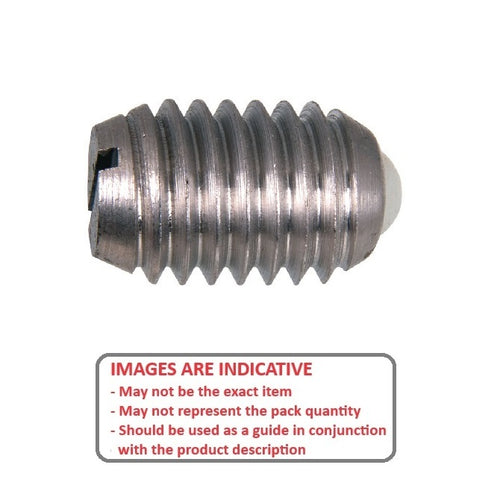

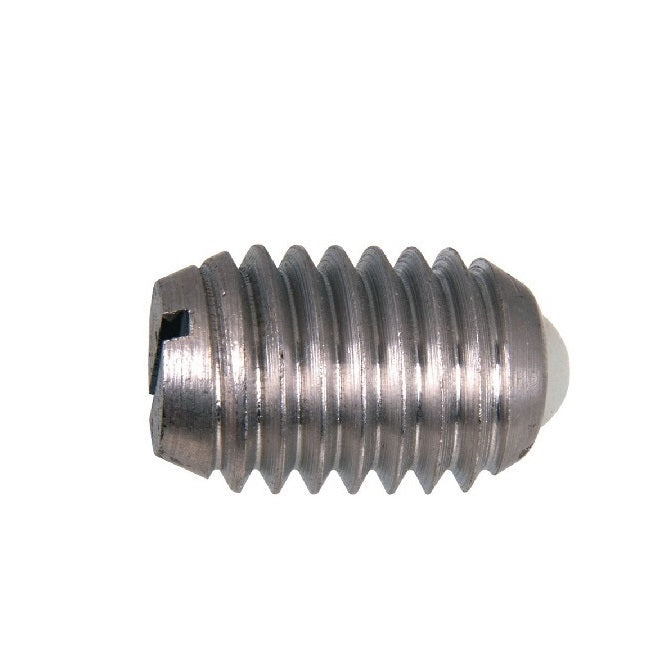

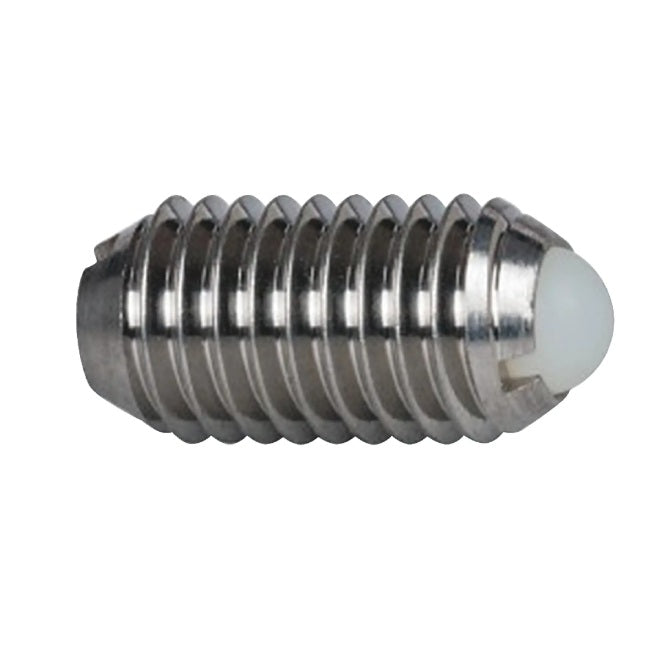

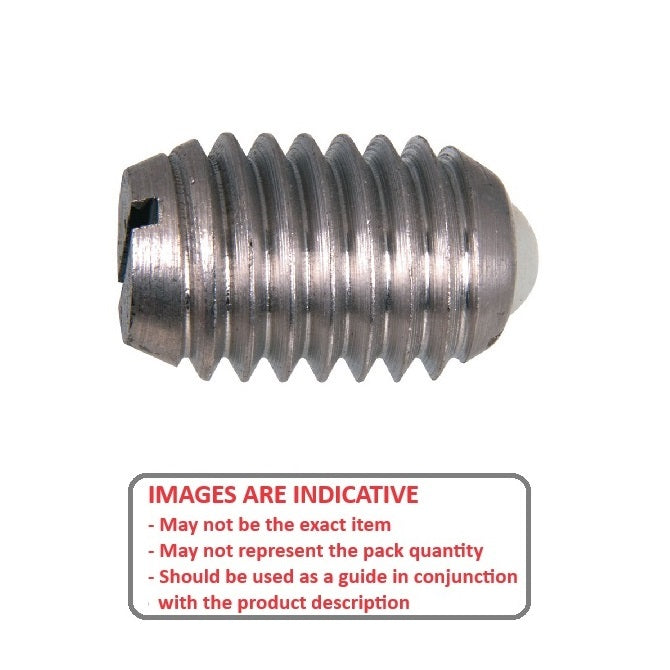

Plungers - Spring - No Handle - Stainless - Acetal NoseAcetal Nose Stainless No Handle Spring Plungers. 303 Stainless Steel body and acetal nose
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

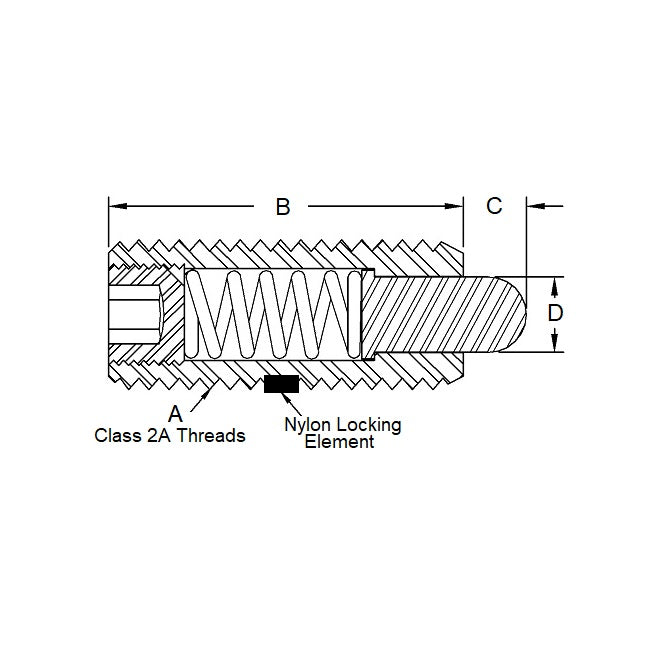

- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (B)
25.4
mm
(Equiv. 1 in.) - Initial Pressure (F1) 13.4 N
- Final Pressure (F2) 66.7 N
- Tip Diameter (D) 3.4 mm
- Tip Length (C) 4.8 mm
- Body Length (B) 25.4 mm
- Drive Hex
- Material Stainless Steel Body with Acetal
Product Compliance and Data
Additional Resources
Cross References
- 2177A54
- SDH6
- SDH-6
