PLST-079C-143-C-047 - Datasheet
MBA
Category Information

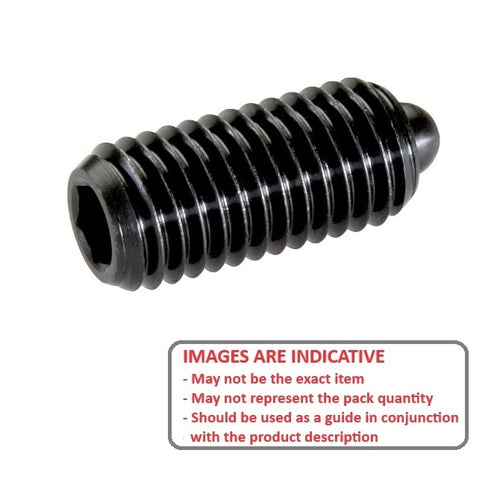

Plungers - Spring - No Handle - Steel - Standard NoseStandard Nose Steel No Handle Spring Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
- A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
- Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
- Also known as ball plungers or spring-loaded pins.
Product Data

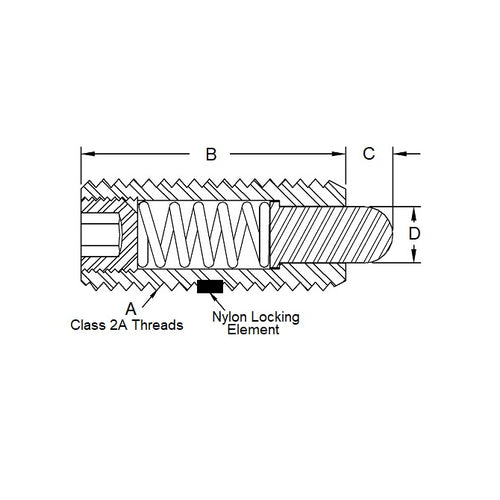

- Thread Size (A) : 5/16-18 UNC (7.94mm)
- Thread Length (B)
14.3
mm
(Equiv. 0.563 in.) - Initial Pressure (F1) 11.1 N
- Final Pressure (F2) 46.7 N
- Tip Diameter (D) 3.4 mm
- Tip Length 4.8 mm
- Body Length (B) 14.3 mm
- Drive Slotted
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 3126A251
- NSP5
- NSP-5
