IN-RIV-079C-136-TS - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Threadsert

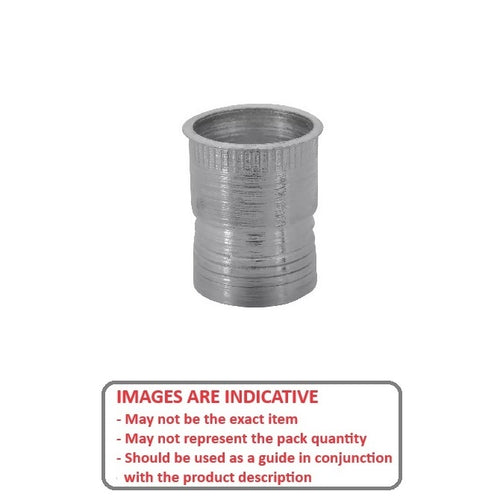

Threadsert Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • These threaded inserts can be used in blind or through hole applications. Can be used in almost any material over 2.38mm thick.
  • As the insert is installed the threaded section is completely swaged into the sleeve portion of the hole, permitting them to be used with grade 8 screws.
  • The installation hole size is determined by the density of the parent material.
  • Can be pressed or otherwise compressed manually with a hammer for quick installation jobs in sheet material
  • Tools are available for assembly in blind holes or production assembly. Email us for a price on tools.

Product Data

  • Internal Thread : 5/16-18 UNC (7.94mm)

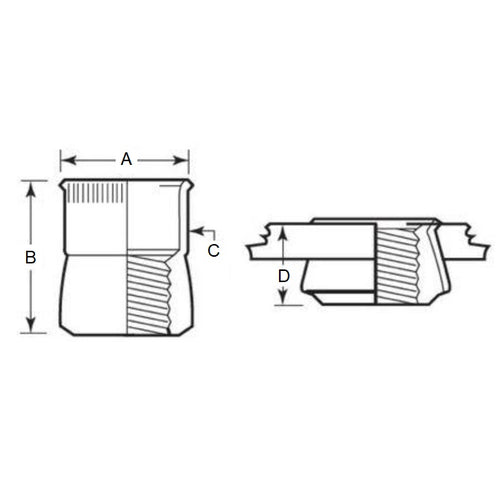

  • Body Width (C) 12.6 mm
    (Equiv. 0.496 in.)
  • Installed Height (D) 15.62 mm
    (Equiv. 0.615 in.)
  • Head Width (A) 13.64 mm
  • Minimum Material Thickness 2.38
  • Material Steel - Cadmium Finish
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 98560A581
  • Small Parts TSS-5618
  • ALC-47871
  • ALC47871
  • TSS5618
