IN-PF-079C-143-W - Datasheet

MBA

Category Information

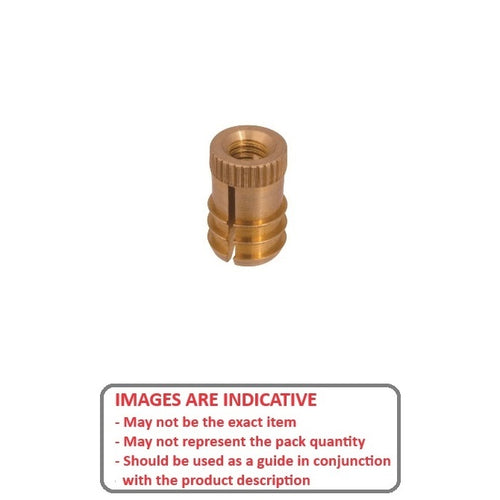

Inserts - Tapered Fit Finserts For Wood and Plastics

Tapered Fit Finserts For Wood and Plastics Inserts. Finserts provide strong metal threads in wood, composition board and thermoplastics such as nylon, polystyrene, cellulose acetate and cycolac. By distributing stress over a greater surface area, firm permanent fastening is ensured.

  • The fins give higher holding strength in softer materials
  • Available with one, two or three fins for varying material thickness
  • Finserts prevent splintering, splitting and thread pullout.

Product Data

  • Internal Thread : 5/16-18 UNC (7.94mm)
  • Hole Size 11.91 mm
    (Equiv. 0.469 in.)
  • Length 14.3 mm
    (Equiv. 0.563 in.)

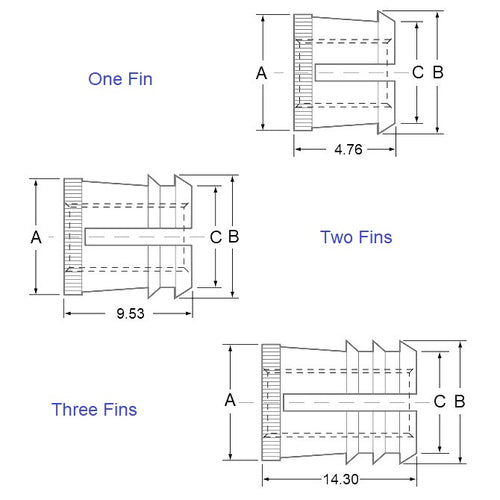

  • A 11.963 mm
  • B 12.522 mm
  • C 11.252 mm
  • Number of Fins 3
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • INPF0794C143W
