SC079W-032-C-SK-CZ - Datasheet
Brighton Best
Category Information

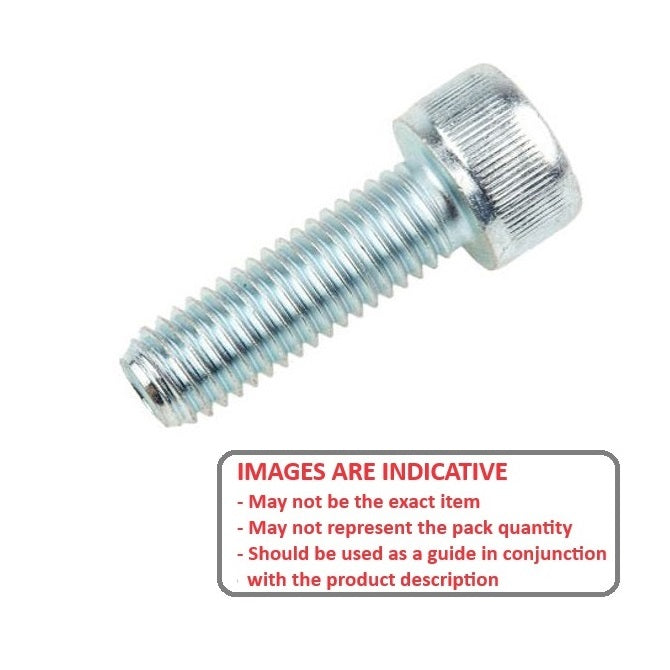

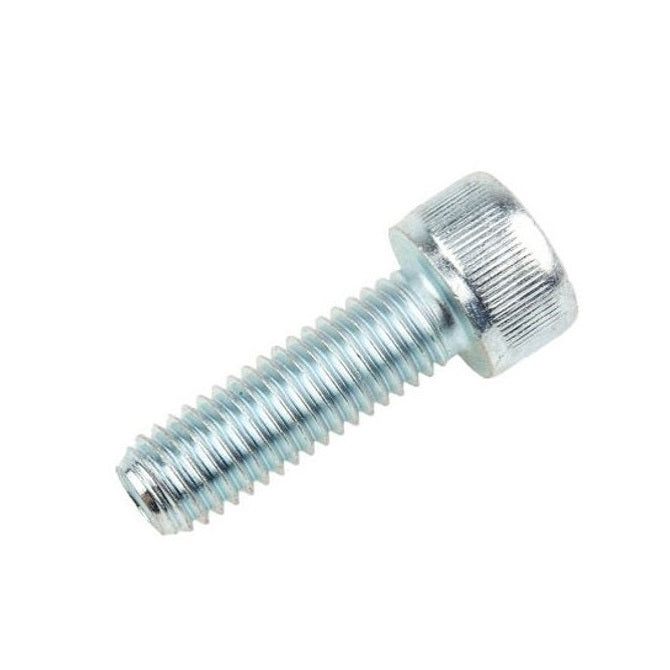

Screws - Socket Cap - Zinc PlatedZinc Plated Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data
- Thread Size (C) : 5/16-18 BSW (7.94mm)
- Thread Length (L)
31.8
mm
(Equiv. 1.252 in.) - Material Zinc Plated Steel
- Head Length (B Max.) 7.9 mm
- Head Diameter (A Max.) 11.9 mm
- Drive Depth (E) 3.84 mm
- Shank Diameter (C) 7.78 - 7.94 mm
- Hex Key (D) 5.56 (7/32) mm
- Pitch 1.411 mm
- Threads Per Inch 18 TPI
- Min thread Length 28.5 mm
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 872715
