BLP-050-0250-TI-AC - Datasheet
MBA
Category Information

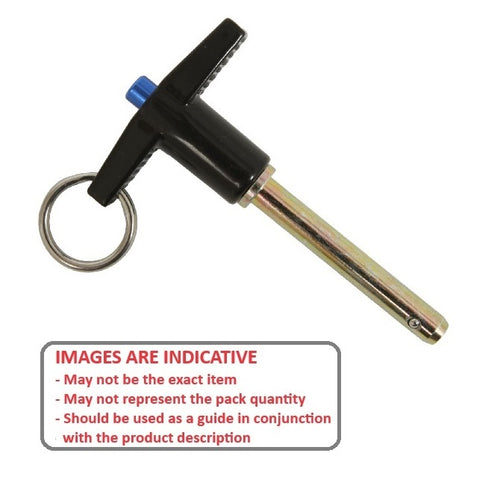

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and AluminiumSteel and Aluminium Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. Heat treated carbon and alloy steel. Aluminium tee handle.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- Carbon steel components

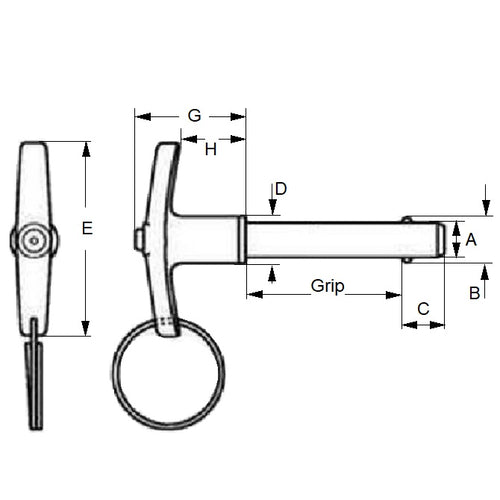

Product Data
- Nominal Diameter
:
5.00
mm
(Equiv. 0.197 in.) - Grip Length (B)
25.00
mm
(Equiv. 0.984 in.) - Pin Material Grade Alloy Steel / Aluminium Handle
- Locking Ball to End (C) 6.00 mm
- Open Ball Distance (B) 5.54 mm
- Shank Diameter (D) 13.00 mm
- Handle Width (E) 46.00 mm
- Handle Height (G) 32.00 mm
- Handle Shank Length (H) 18 mm
- Max. Diameter 4.96 mm
- Min. Diameter 4.92 mm
- Material Steel Alloy with Aluminium Handle
