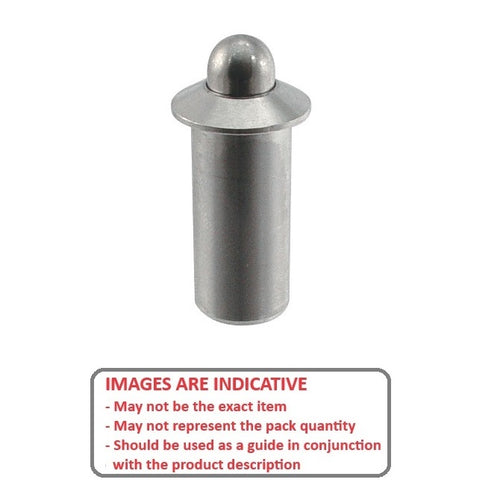

PLSP-050-115-S3-002 - Datasheet

MBA

Product Data

• Body Diameter (A) : 5.00 mm _{+ 0.10 / - 0.00}
  (Equiv. 0.197 in.)
• Body Length (B) 11.5 mm _{+ 0.00 / - 0.10}
  (Equiv. 0.453 in.)
• Initial Pressure (F1) 0.60 N _{+ 0.00 / - 0.12}
• Final Pressure (F2) 2.00 N
• Tip Diameter (D) 4.00 mm
• Tip Length (C) 4.00 mm
• Spring Material 304 Stainless
• Body Material 303 Stainless
• Tip Shape Flat head
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-MPFS5-4
• Misumi C-MPJS5-4
• CMPJS54
• CMPFS54
