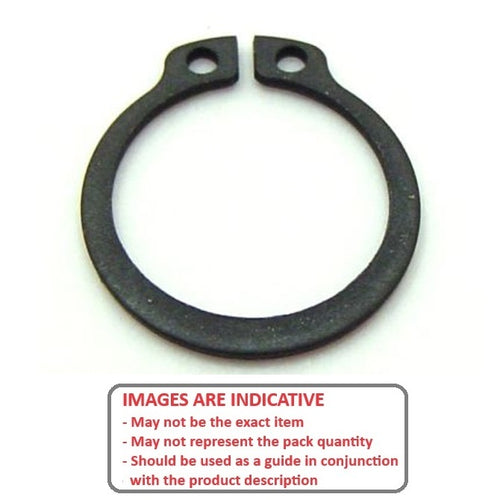

Retaining Rings - External - Circlips - Grooveless

Grooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

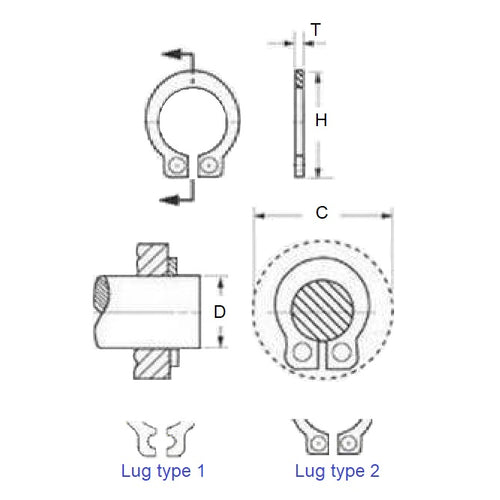

Shaft Diameter (Ds) : 5.00 mm _{+/- 0.06}
(Equiv. 0.197 in.)
Clip Thickness (T) 0.80 mm
(Equiv. 0.031 in.)
Approx. Loose Circlip ID (A) 4.75 mm
Assemb. Clearance on Shaft (C) 11.00
Allowable Load 127 N

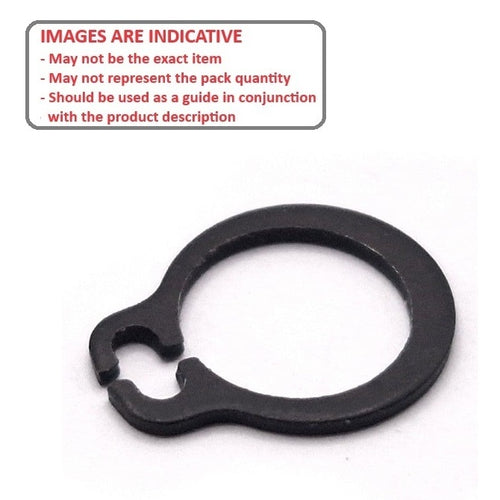

Lug Type 1 (Open) mm
Tool PRS-ZGG1
Material Carbon Steel

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

NoCor DSHX-005
DSHX005
M1440-0050
M14400050
N14400019
N1440-0019
