PLBP-040-050-PS-007 - Datasheet
MBA
Category Information

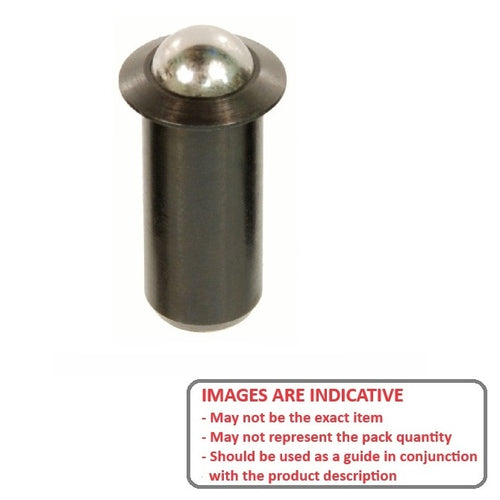

Plungers - Ball Push Fit - Plastic Body - Stainless BallStainless Ball Plastic Body Ball Push Fit Plungers. Unthreaded.
- Non-threaded, spring-loaded device that uses a ball to secure, locate, or position components in applications like drawers, dies, and fixtures.
- Installed by simply pushing it into a pre-drilled hole in materials like wood, soft plastic, or aluminum, making it a quick alternative to threaded plungers where they are impractical.
Product Data
- Body Diameter (D)
:
4.00
mm
+ 0.1 / - 0.0
(Equiv. 0.157 in.) - Length (L)
5.0
mm
(Equiv. 0.197 in.) - Initial Pressure (F1) 3.0 N
- Final Pressure (F2) 7.0 N
- Ball Diameter (D1) 3.0 mm
- Ball Height (H) 0.7 mm
- Shoulder Diameter (S) 4.6 mm
- 4.6
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- PFP-10
- PFP10
