PLBP-040-050-PP-007 - Datasheet

MBA

Category Information

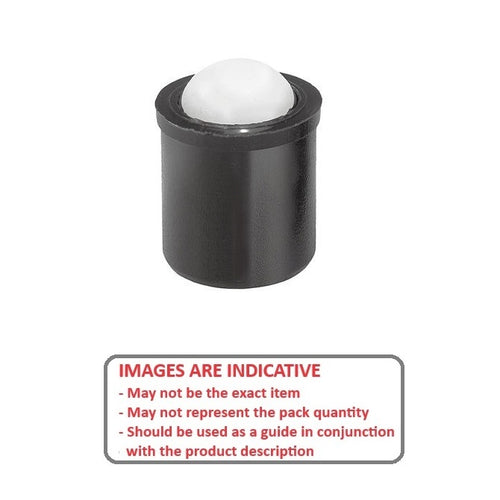

Plungers - Ball Push Fit - Plastic Body - Plastic Ball

Plastic Ball Plastic Body Ball Push Fit Plungers. Unthreaded. Plastic body and ball.

  • Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
  • Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
  • Ball: W.-Nr 1.4034 (420) Stainless Steel.
  • Spring: W.-Nr 1.4310 (301) Stainless Steel.
  • Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.

Product Data

  • Body Diameter (D) : 4.00 mm + 0.1 / - 0.0
    (Equiv. 0.157 in.)
  • Length (L) 5.0 mm
    (Equiv. 0.197 in.)
  • Initial Pressure (F1) 3.0 N
  • Final Pressure (F2) 7.0 N
  • Ball Diameter (D1) 3.0 mm
  • Ball Height (H) 0.7 mm
  • Shoulder Diameter (S) 4.6 mm
  • 4.6
  • Weight (Approx) 0.2 g
  • Material Plastic
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PFP106
  • PFP-106
  • BSD-4
  • BSD4
