CCE-00400-S15 - Datasheet
MBA
Category Information

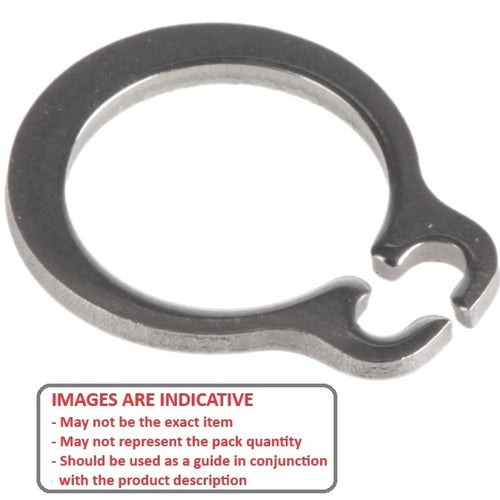

Retaining Rings - External - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
Product Data
- Shaft Diameter (Ds)
:
4.00
mm
(Equiv. 0.157 in.) - Clip Thickness (T)
0.40
mm
+ 0.00 / - 0.04
(Equiv. 0.016 in.) - Groove Dia. (Dg)
3.80
mm
+ 0.00 / - 0.05
(Equiv. 0.15 in.) - Approx. Loose Circlip ID (A) 3.70 mm
- Groove Width (W) 0.50 mm
- Clearance on Shaft (C1) 8.60 mm
- Clearance in Groove (C1) 8.20 mm
- Min. Lug Diameter (h) 1.00 mm
- Min. Extension (n) 0.30
- Standard DIN471
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 471-004-SS
- 90967A501
- Seeger A-004-SS
- Seeger A4X0.4-411
- Bossard BN818-004-SS
- Waldes D1400-004-SS
- NoCor DSH-004-SS
- Rotor Clip DSH-004-SS
- DSH004SS
- 14000040KSF
- 1400-0040KSF
- D1400-0040KSF
- D14000040KSF
- D1400004SS
- A004SS
- A4X04411
- 471004SS
- BN818004SS
