WH-048-079-159-P-GL - Datasheet

KMS

Category Information

Wheels - Skate Conveyor

Skate Conveyor Wheels. Replacement acetal wheels with glass balls for product moving gravity feed skate conveyors. Plastic skate wheels are ideal for washdown or outdoor applications.

  • General Duty
  • Plain Centre

Product Data

  • Diameter : 48.30 mm
    (Equiv. 1.902 in.)
  • Width 15.90 / 23.80 mm
    (Equiv. 0.626 in.)
  • Bore 7.938 mm
    (Equiv. 0.313 in.)
  • Max Load per Wheel 23.80 kg
  • Information With glass balls for corrosion resistance
  • Material Acetal
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • KMS SW312-G
    • SW312G
    View full details

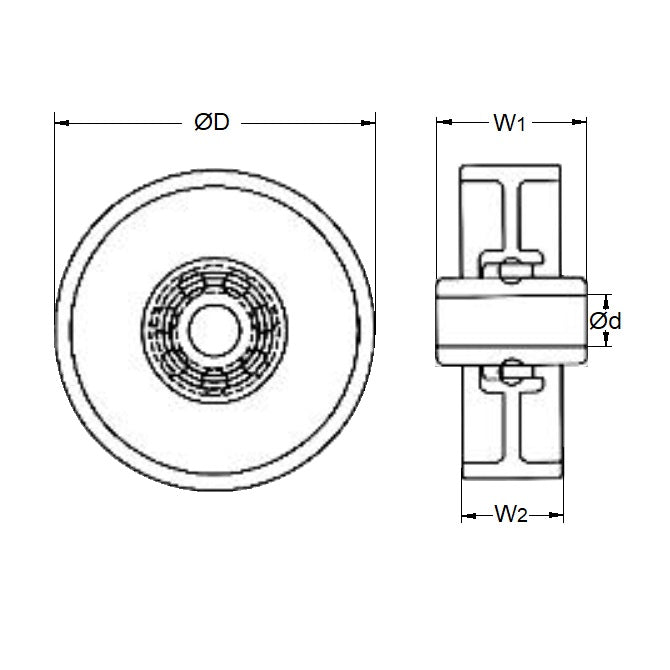

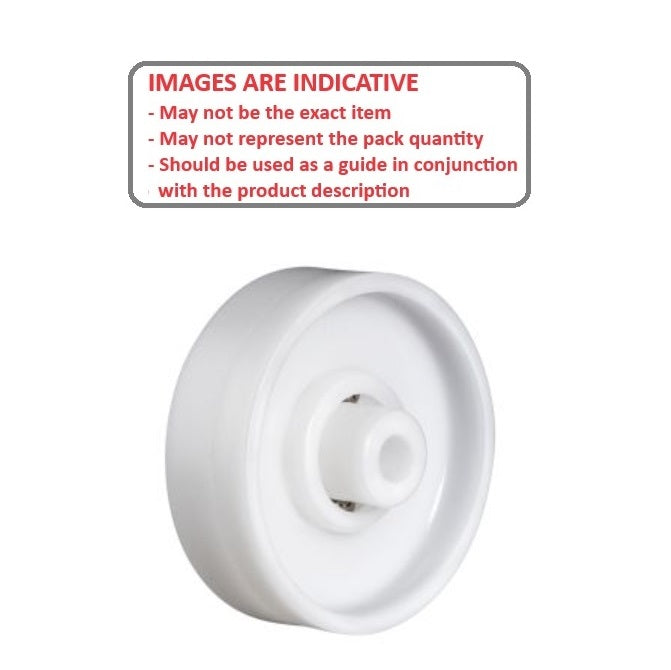

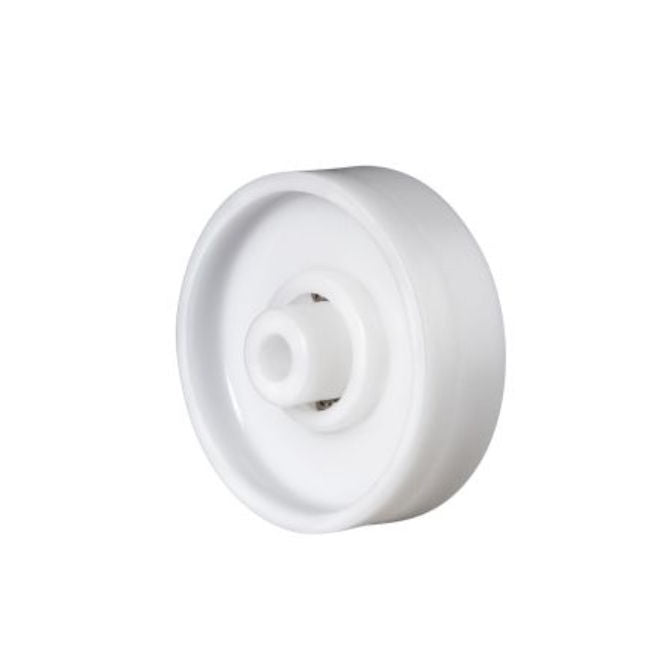

    WH-048-079-159-P-GLDiagramWH-048-079-159-P-GLImage
