CCI-04763-CZY - Datasheet
MBA
Category Information

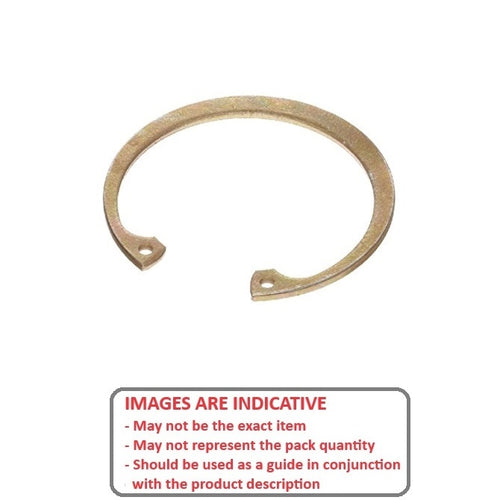

Retaining Rings - Internal - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
47.63
mm
(Equiv. 1.875 in.) - Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.) - Groove Dia. (Dg)
50.52
mm
+ 0.00 / - 0.06
(Equiv. 1.989 in.) - Approx. Loose Circlip OD (Dr) 52.63 mm + 0.89 / - 0.64
- Groove Width (W) 1.73 mm + 0.10 / - 0.00
- Clearance in Bore (C) 37.08 mm
- Clearance in Groove (C1) 40.13 mm
- Min. Lug Diameter (h) 2.31 mm
- Min. Extension (n) 4.34
- Standard MIL-16625
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 9809A242
- NoCor HO-187-ZD
- HO187ZD
- N1300-0187AZD
- N13000187AZD
