CSC-460-053-31-M - Datasheet
MBA
Category Information

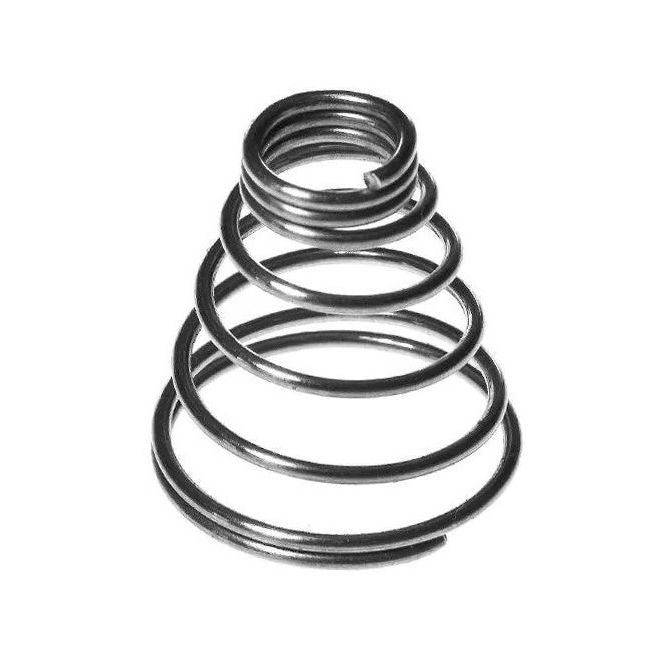

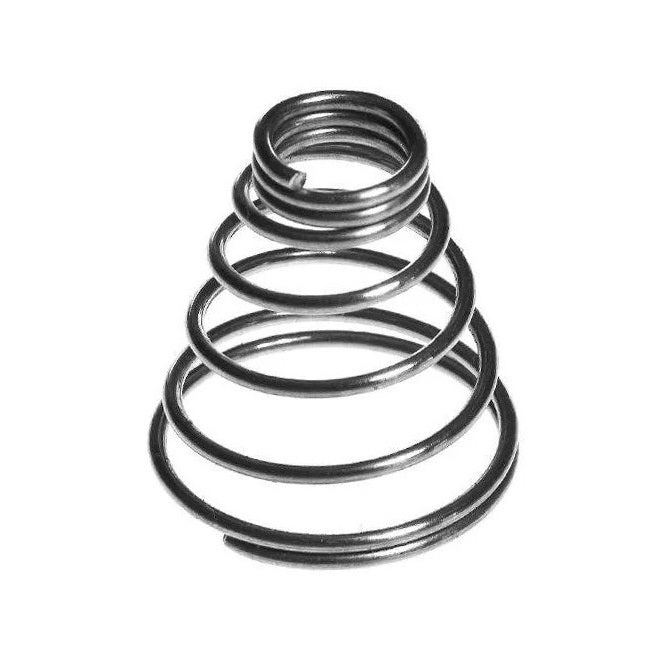

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data
- Large End OD
:
46.00
mm
(Equiv. 1.811 in.) - Free Length
53.0
mm
(Equiv. 2.087 in.) - Small End OD
38.1
mm
(Equiv. 1.5 in.) - Inside Diameter Clearance 32.4 mm
- Wire Thickness 3.1 mm
- Rate 0.4 kg/mm
- Inside Diameter 32.4 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX51
- CX-51
