CCE-04604-S15-V - Datasheet
MBA
Category Information

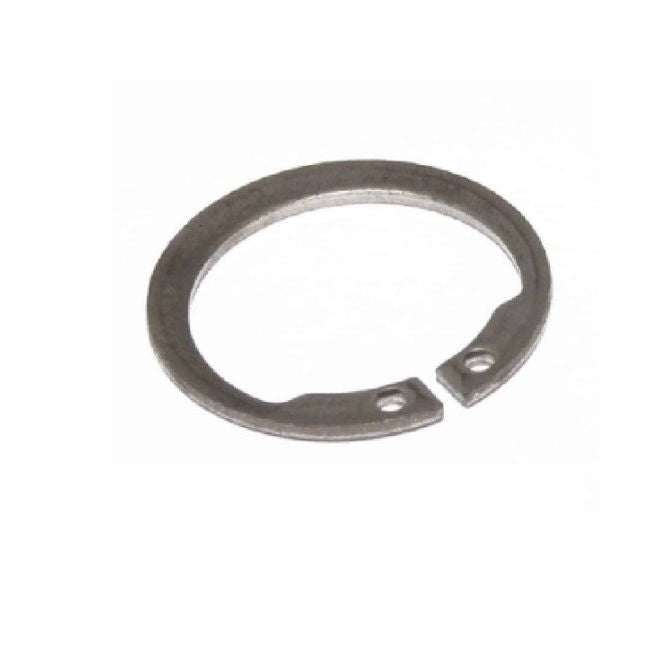

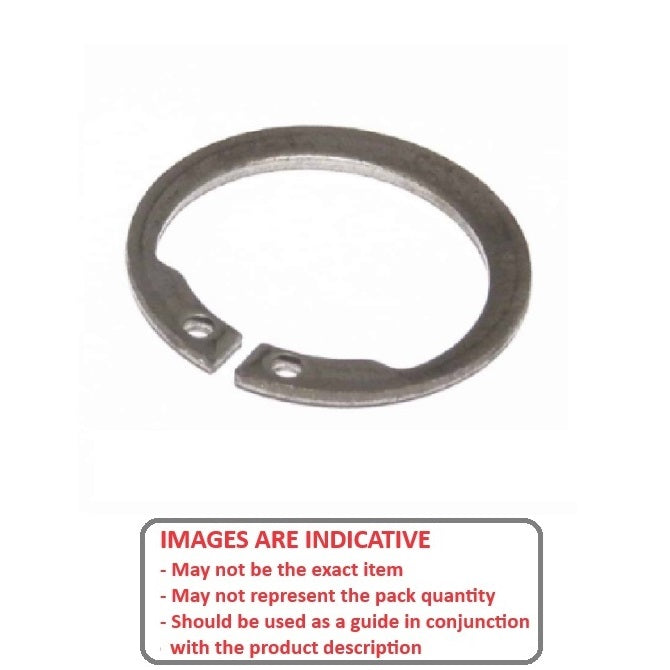

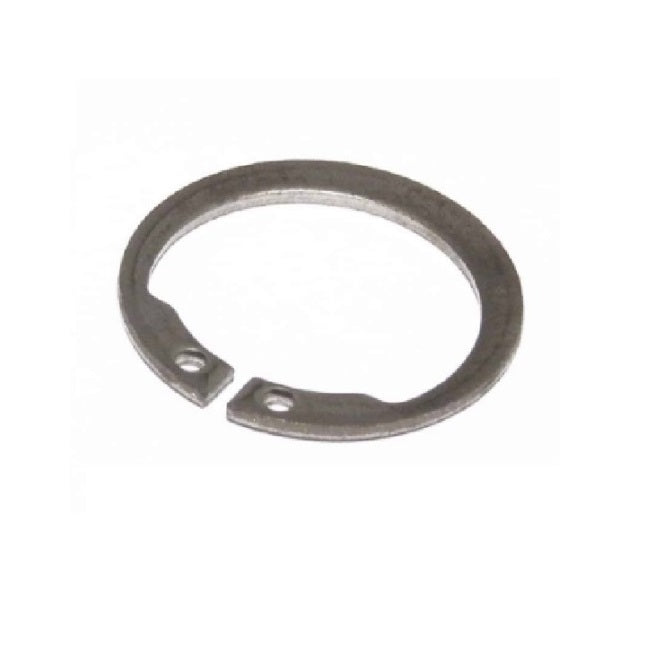

Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.
Product Data
- Shaft Diameter (Ds)
:
46.04
mm
(Equiv. 1.813 in.) - Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.) - Groove Dia. (Dg)
43.38
mm
+/- 0.076
(Equiv. 1.708 in.) - Approx. Loose Circlip ID (A) 42.55 mm
- Radial Wall (S) min/max 2.54 mm
- Groove Width (W) 1.73 mm + 0.10 / - 0.00
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHI-181-SS
- SHI181SS
- N1408-0181KSF
- N14080181KSF
