MSM-080M-032-CNP - Datasheet
MBA
Category Information

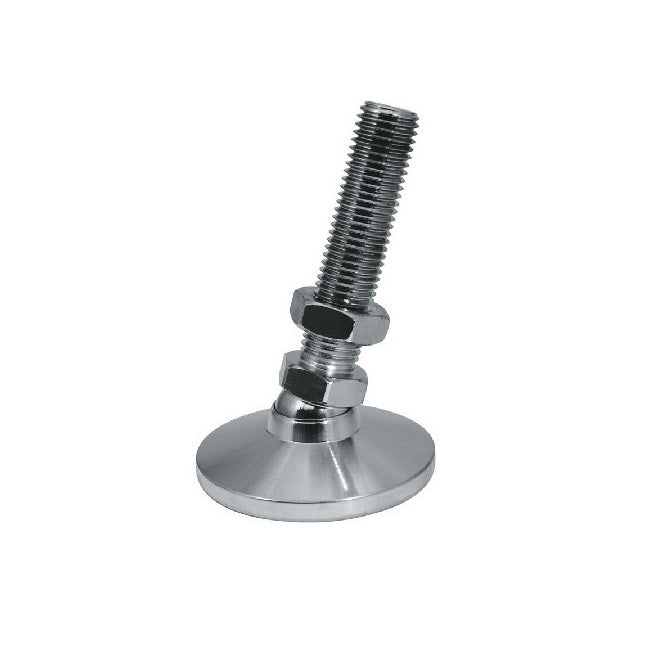

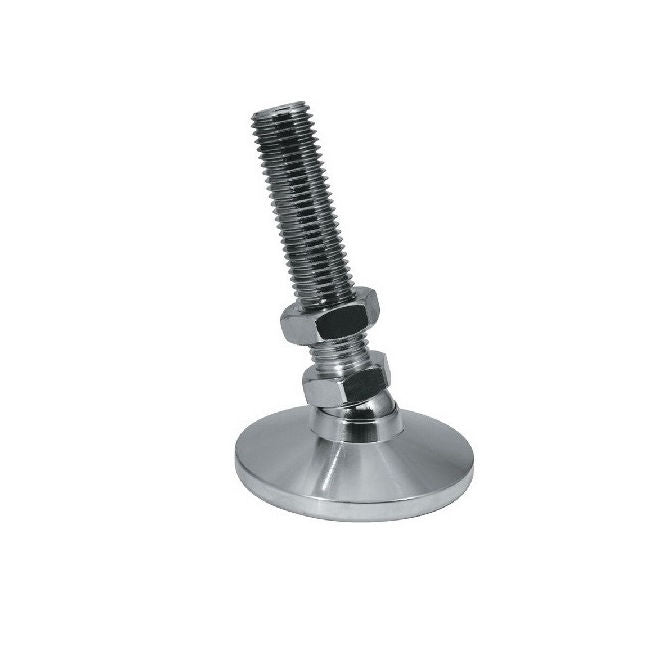

Mounts - Levelling Studded - Swivel - Plated - StandardStandard Plated Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : M8 (8x1.25mm)
- Base Diameter (D)
25.0
mm
(Equiv. 0.984 in.) - Foot Height (C)
18.0
mm
(Equiv. 0.709 in.) - Thread Length (F) 32.0 mm
- Base Height (E) 4.00 mm
- Overall Height 50.0 mm
- Load Rating 450 Kg
- Finish Nickel Plated
- Hex Flats (B) 12.000 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- MSM0450M08NP
- MLP280
- MLP-280
