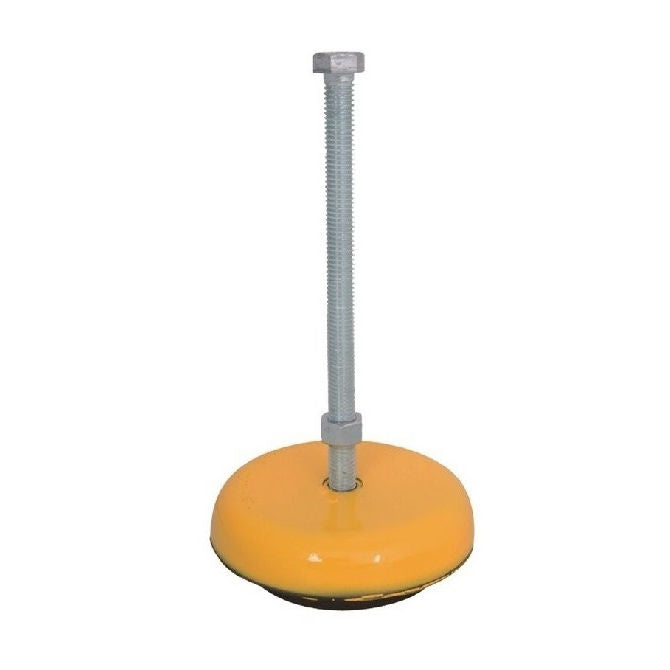

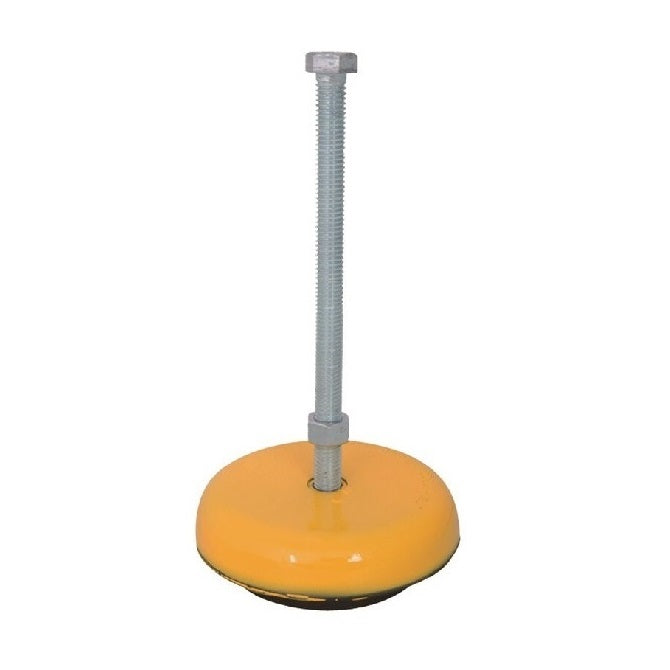

Elastomer Base OSHA Yellow Levelling Studded Mounts. Levelling adjusters. Protects general metalworking processes equipment including punch presses, milling machines, lathes, mixers, injection moulding machines, grinders from shock and vibration.

• An expanded range may be available on special order. Please enquire.
• Simplifies installation. 63.5mm of neoprene provides controlled deflections under load.
• High isolation efficiency for vibration and shock forces, and reduction of transmitted sound. Adjustable up to 12.7mm above loaded height by a few turns of the leveling bolt and tightening the checknut.
• Corrosion resistant outer housing provides high strength. Neoprene elastomer resists oil, grease, ozone and caustics.

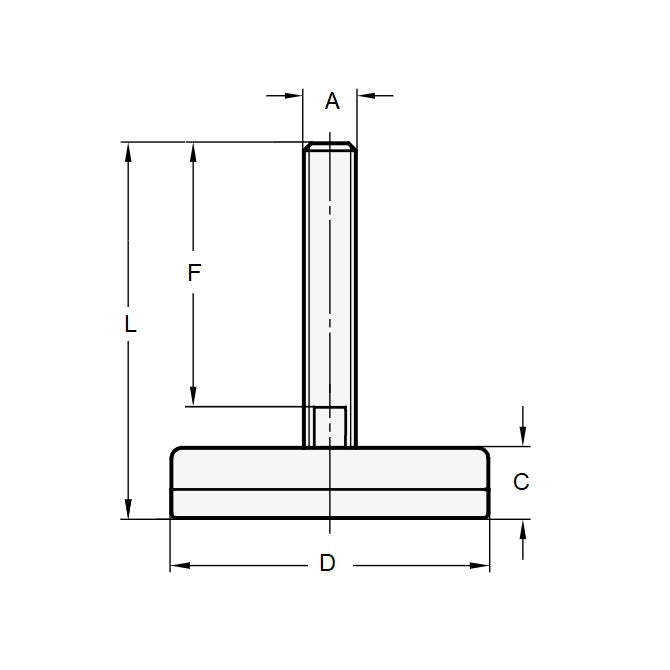

• Zinc plated hardware resists rust. Hex head bolt and locknut finished with mounts. Height dimensions indicate free height of mount under no load.
• OSHA Yellow Steel Cover over elastomer base
