CCI-04445-CZY - Datasheet

MBA

Category Information

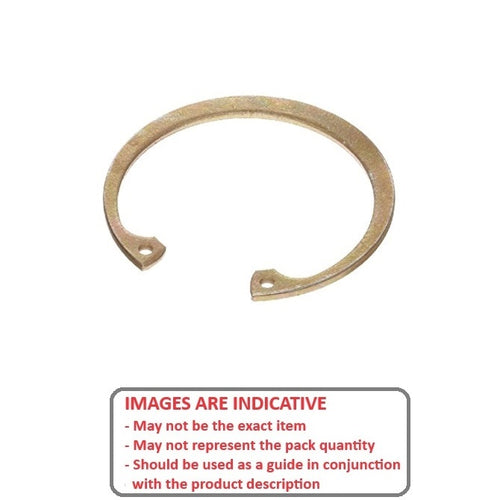

Retaining Rings - Internal - Circlips - Standard - Zinc Plated

Zinc Plated Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Zinc plated carbon steel
Tolerances on request.

Product Data

Housing Bore (B) : 44.45 mm
(Equiv. 1.75 in.)
Clip Thickness (T) 1.57 mm _{+/- 0.127}
(Equiv. 0.062 in.)
Groove Dia. (Dg) 47.19 mm _{+ 0.00 / - 0.06}
(Equiv. 1.858 in.)
Approx. Loose Circlip OD (Dr) 49.33 mm + 0.89 / - 0.64
Groove Width (W) 1.73 mm + 0.10 / - 0.00
Clearance in Bore (C) 34.04 mm
Clearance in Groove (C1) 36.58 mm
Min. Lug Diameter (h) 1.93 mm
Min. Extension (n) 4.11
Standard MIL-16625
Material Carbon Steel Zinc Plated

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

98409A245
NoCor HO-175-ZD
HO175ZD
N1300-0175AZD
N13000175AZD
