YE-12RS - Datasheet

MBA

Category Information

Yoke Ends - Blank

Blank Yoke Ends. Linkage connectors with blank ends - no hole.

  • A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
  • It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
  • Yoke ends require a clevis pin and cotter pin for secure attachment.
  • Drop forged steel machined to SAE standards
  • Also see clevis joints

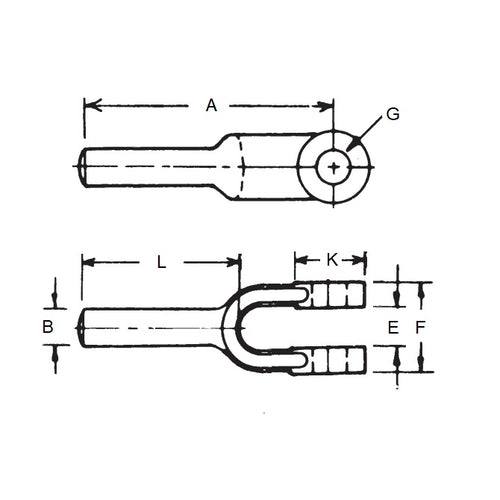

Product Data

  • Effective Length (A) : 44.450 mm
    (Equiv. 1.75 in.)
  • Hub Diameter (B) 6.350 mm
    (Equiv. 0.25 in.)
  • Gap (E) +/- 0.38 7.140 mm
    (Equiv. 0.281 in.)
  • Width (F) +/- 0.38 7.14 mm
  • Hole Size (G) +0.25 6.35 mm
  • Stud Height (L) 24 mm
  • Housing Diameter (K) 13 mm
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 6414K27
