CCI-04200-C-V - Datasheet
MBA
Category Information

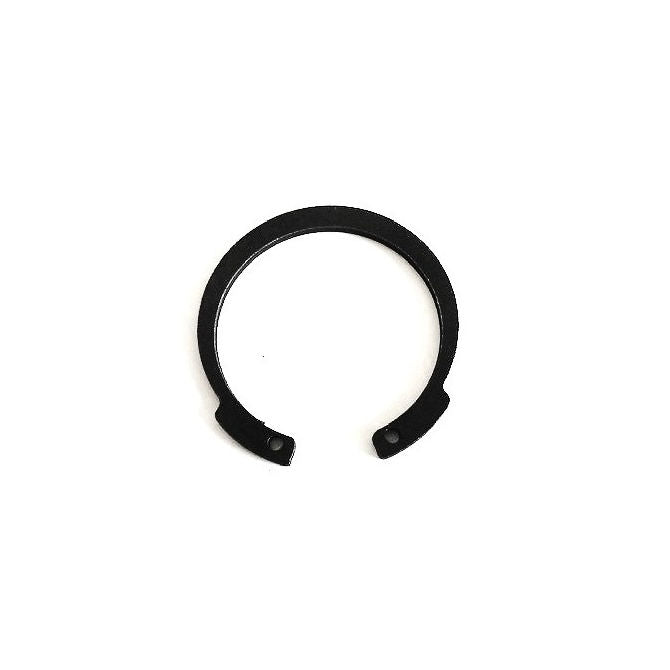

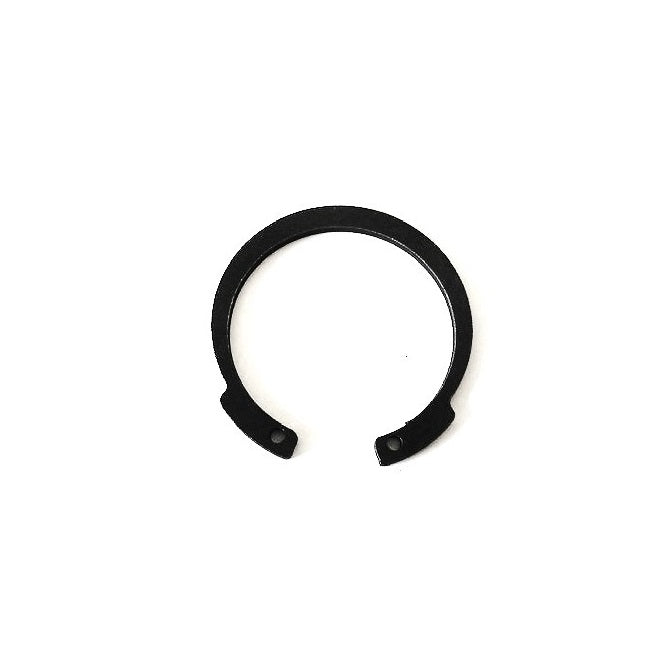

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data
- Housing Bore (B)
:
42.00
mm
(Equiv. 1.654 in.) - Clip Thickness (T)
1.75
mm
+ 0.25 / - 0.00
(Equiv. 0.069 in.) - Groove Dia. (Dg)
44.45
mm
+ 0.00 / - 0.06
(Equiv. 1.75 in.) - Approx. Loose Circlip OD (Dr) 45.50 mm + 0.90 / - 0.39
- Radial Wall Max (S) 4.0 - 4.2
- Groove Width (W) 1.85 mm
- Tool PRS-I018
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-042
- Ellison INTV-042
- Seeger JV-042
- Seeger JV42-S
- Seeger JV42X1.75
- NoCor MDHOI-042
- MDHOI042
- JV42S
- JV042
- INTV042
- M1308-0420APP
- M1308042
- M13080420APP
- BN830042
