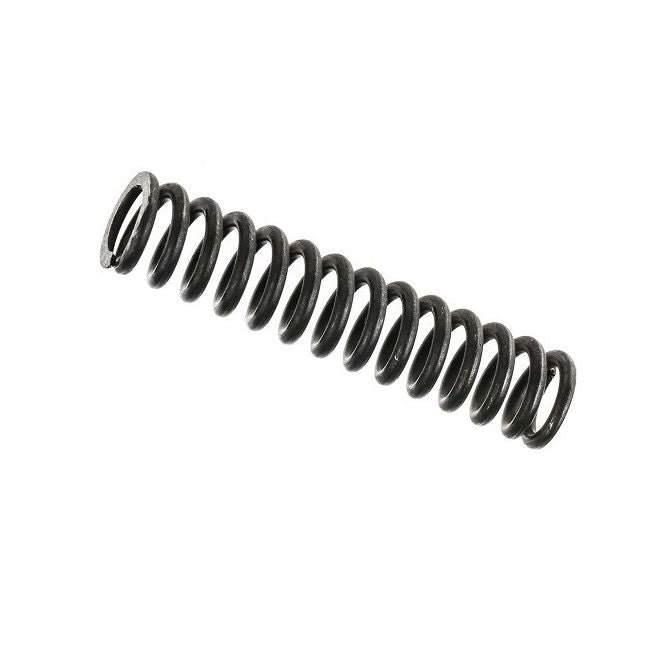

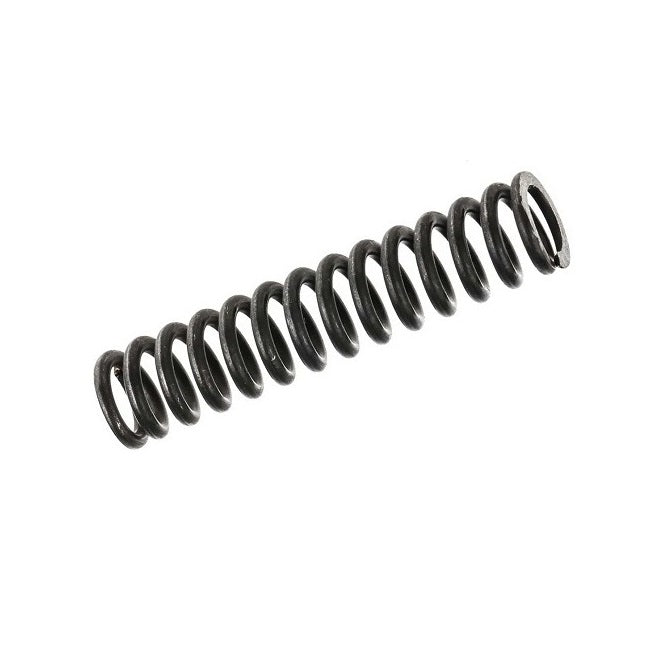

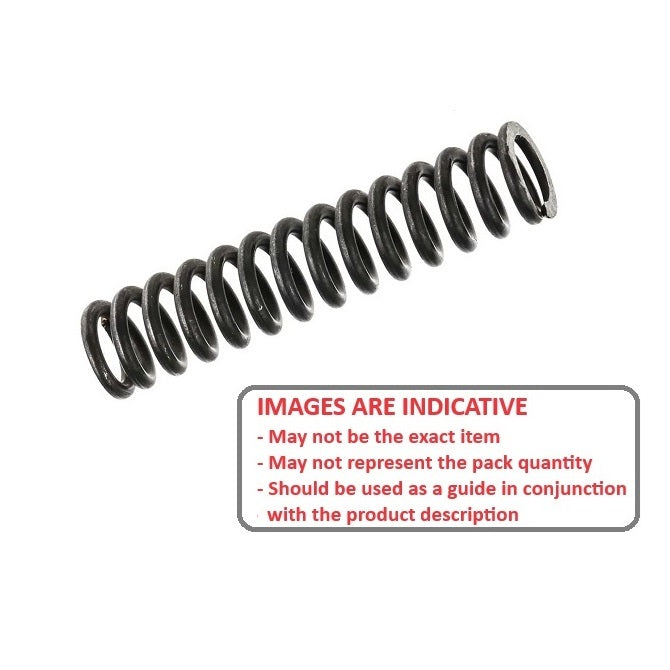

Springs - Compression - Music Wire

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

  • Spring OD (D0) : 42.85 mm +/- 1.02
    (Equiv. 1.687 in.)
  • Free Length (L0) 127.0 mm +/- 5.08
    (Equiv. 5 in.)
  • Wire Diameter (d) 4.50 mm +/- 0.0254
    (Equiv. 0.177 in.)
  • Rate (P/f) 7.7 N/mm
  • Solid Height (Sh) 53.290 mm
  • Approx. ID 33.9 mm
  • End Type Ground Flush
  • Material Carbon Spring Steel
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • ASI C1687-177-5000
  • C16871775000
