SUG-527RS - Datasheet
MBA
Category Information

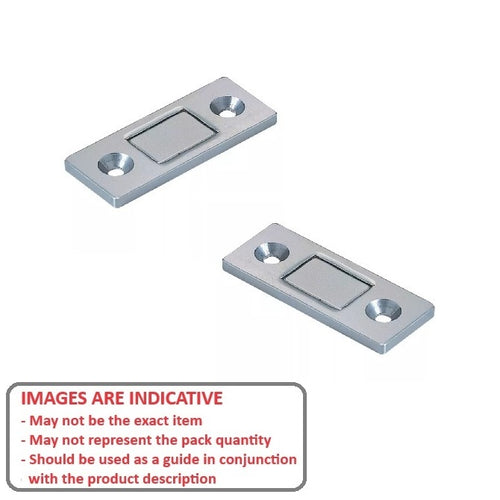

Catches - Magnetic Ultra Thin - Heavy DutyHeavy Duty Magnetic Ultra Thin Catches. Ultra thin strong magnetic catch is perfect for tight areas. Has a full 4kg of magnetic force.

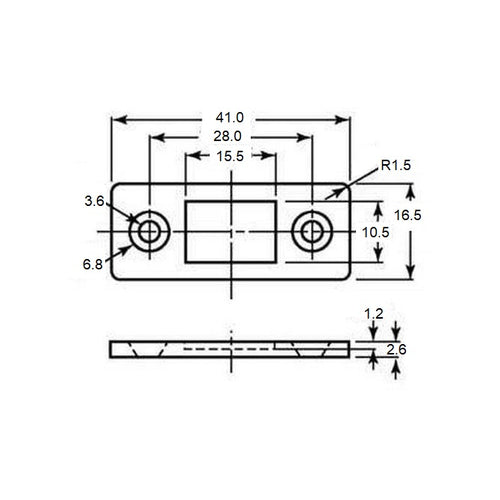

Product Data
- Length
:
41
mm
(Equiv. 1.614 in.) - Width
16.5
mm
(Equiv. 0.65 in.) - Height
2.6
mm
(Equiv. 0.102 in.) - Strike Length 15.5 mm
- Strike Width 10.5 mm
- Strike Height 28 mm
- Magnetic Force 4 kg
