CCI-04000-S15 - Datasheet
MBA
Category Information

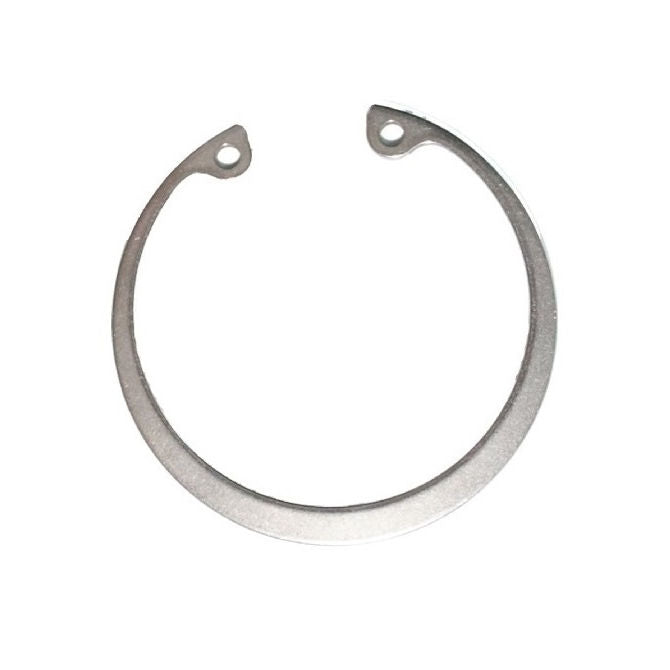

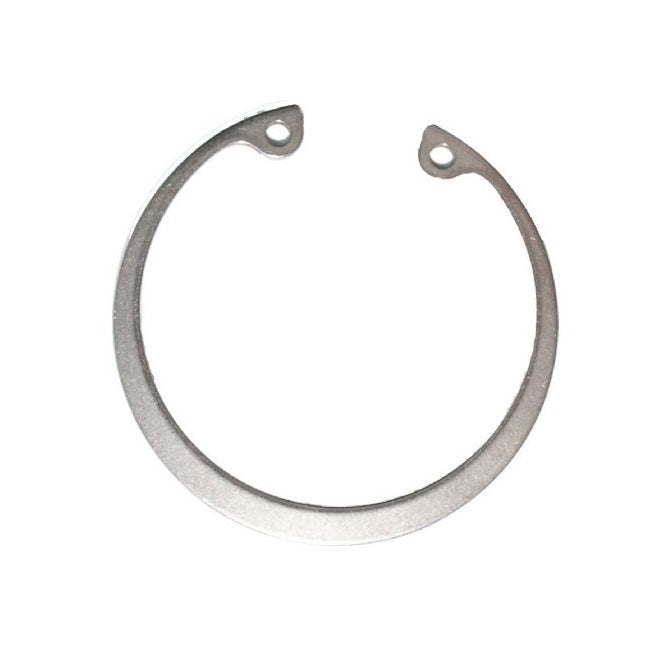

Retaining Rings - Internal - Circlips - Standard - Stainless SteelStainless Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- PH15-7 Mo Stainless Steel.
- Tolerances on request.
Product Data
- Housing Bore (B)
:
40.00
mm
(Equiv. 1.575 in.) - Clip Thickness (T)
1.75
mm
+ 0.25 / - 0.00
(Equiv. 0.069 in.) - Groove Dia. (Dg)
42.50
mm
+ 0.00 / - 0.06
(Equiv. 1.673 in.) - Approx. Loose Circlip OD (Dr) 43.50 mm + 0.90 / - 0.39
- Groove Width (W) 1.85 mm + 0.10 / - 0.00
- Clearance in Bore (C) 27.80 mm
- Clearance in Groove (C1) 30.90 mm
- Min. Lug Diameter (h) 2.50 mm
- Min. Extension (n) 3.80
- Standard DIN472
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-040-SS
- 98394A479
- Bossard BN-822-040-SS
- Waldes D1300-040-SS
- NoCor DHO-040-SS
- Rotor Clip DHO-040-SS
- Seeger J-040-SS
- Seeger J40-411
- Seeger J40K500-S
- Seeger J40X1.75-411
- Seeger J40X1.75SS
- Seeger NZT.J40-411
- D13000400KSF
- D1300-0400KSF
- D1300040SS
- J40411
- J40K500S
- J040SS
- J40X175411
- DHO040SS
- NZTJ40411
- 472040SS
- BN822040SS
