CCI-04000-C-V - Datasheet
MBA
Category Information

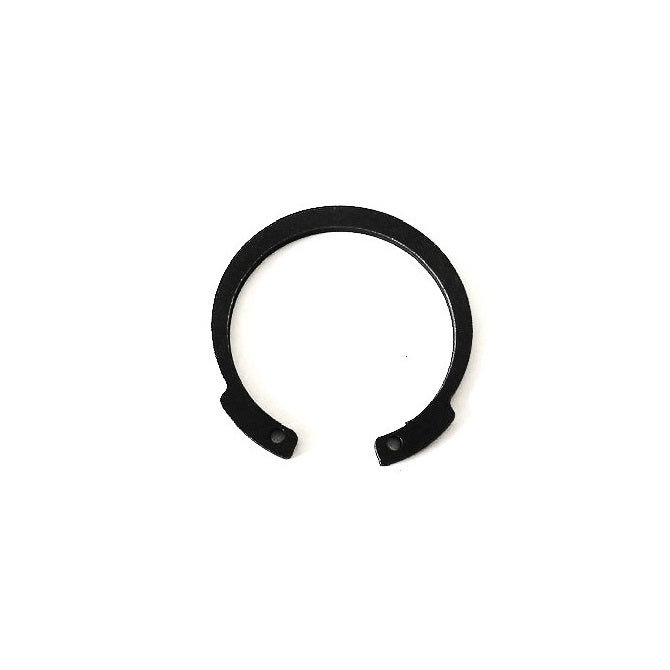

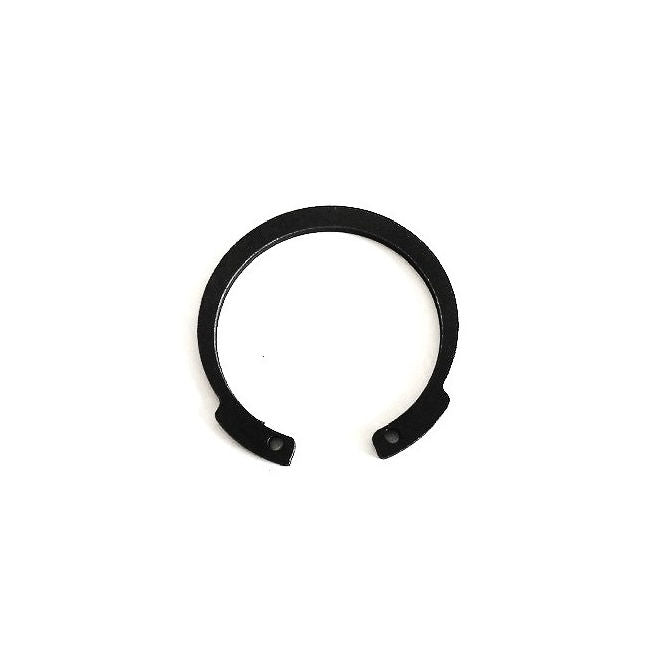

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data
- Housing Bore (B)
:
40.00
mm
(Equiv. 1.575 in.) - Clip Thickness (T)
1.75
mm
+ 0.25 / - 0.00
(Equiv. 0.069 in.) - Groove Dia. (Dg)
42.50
mm
+ 0.00 / - 0.06
(Equiv. 1.673 in.) - Approx. Loose Circlip OD (Dr) 43.50 mm + 0.90 / - 0.39
- Radial Wall Max (S) 4.0 - 4.2
- Groove Width (W) 1.85 mm
- Tool PRS-I018
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-040
- Ellison INTV-040
- Seeger JV-040
- NoCor MDHOI-040
- MDHOI040
- JV040
- INTV040
- M1308040
- M1308-040
- M13080400APP
- M1308-0400APP
- BN830040
