W0200-D-040-010-C - Datasheet
MBA
Category Information

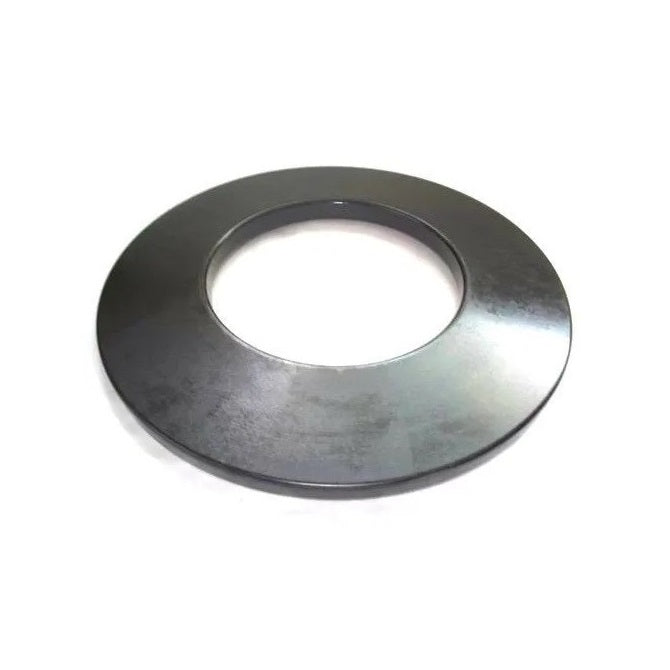

Washers - Disc Spring - Standard - Carbon SteelCarbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.

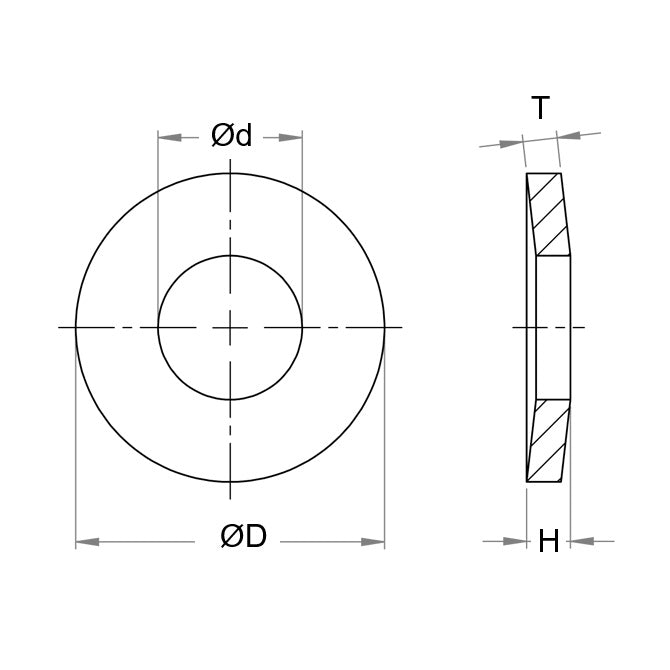

Product Data
- Nominal Outside Diameter (A)
:
40.00
mm
(Equiv. 1.575 in.) - Nominal Inside Diameter (B)
20.00
mm
+ 0.40 / - 0.00
(Equiv. 0.787 in.) - Stock Thickness (C)
1.00
mm
(Equiv. 0.039 in.) - Loaded Height (L1) 1.33 mm
- Load at L1 102.0 kg
- Free Height (E) 2.30 mm
- Actual ID (Ref) 20.4 mm
- Inside Height (D) 1.30 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 96445K811
- WASCA DS402010
- S4322
