REF-048-R-CC - Datasheet
MBA
Category Information

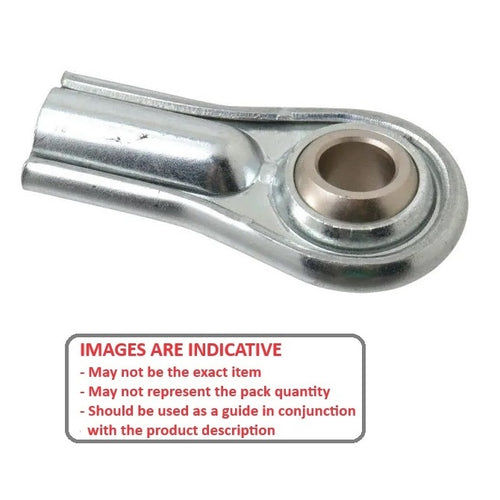

Rod Ends - Female - Steel - Plain - StampedStamped Plain Steel Female Rod Ends. Economy stamped style combines high strength with low cost. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Made from low carbon steel and plated for corrosion resistance.
- Ball is case hardened.
Product Data
- Eye Size (d1)
:
4.826
mm
(Equiv. 0.19 in.) - Overall Length (L)
36.50
mm
(Equiv. 1.437 in.) - Thread Size 10-32 UNF Right
- Thread Length (l2) 12.70 mm
- Head Width (W) 6.35 mm
- Eye Width (W1) 7.93 mm
- Head Diameter (D) 19.05 mm
- Centre Height (l1) 26.98 mm
- Body Width/Flange Width(W2/D3) 7.93 / 11.43 mm
- Material Steel Stamped
Product Compliance and Data
Additional Resources
Cross References
- ARE10
- ARE-10
