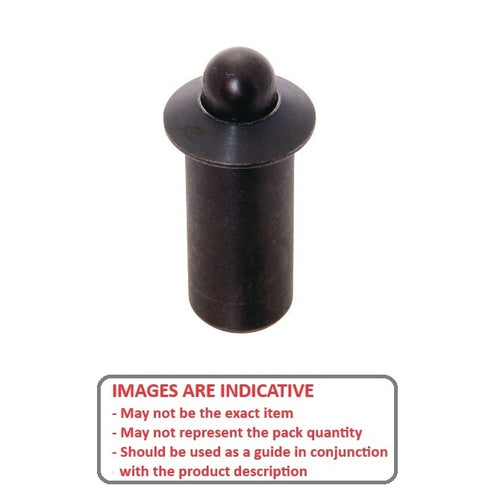

PLSP-048-112-C-020 - Datasheet

MBA

Product Data

• Body Diameter (A) : 4.78 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.188 in.)
• Body Length (B) 11.2 mm
  (Equiv. 0.441 in.)
• Initial Pressure (F1) 6.7 N
• Final Pressure (F2) 20.0 N
• Tip Diameter (D1) 3.1 mm
• Tip Length (C) 2.4 mm
• Drive Push Fit
• Material Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8683A21
• PFP52
• PFP-52
