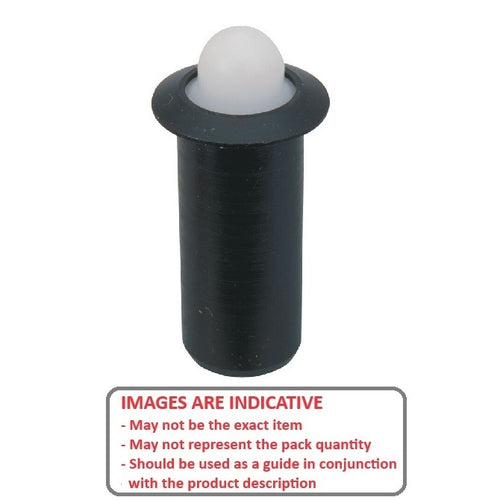

PLSP-048-103-AC-011 - Datasheet

MBA

Product Data

• Body Diameter (A) : 4.78 mm _{+ 0.1 / - 0.0}
  (Equiv. 0.188 in.)
• Body Length (B) 10.3 mm
  (Equiv. 0.406 in.)
• Initial Pressure (F1) 3.3 N
• Final Pressure (F2) 11.1 N
• Tip Diameter (D1) 3.1 mm
• Tip Length (C) 2.4 mm
• Drive Push Fit
• Material Steel Body with Acetal

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Threaded Ball Plungers

• Push Fit Ball Plungers


• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• 8683A19
• PFP-87
• PFP87
