Miniature Bearings Australia
LYP-CLK-048-032-CZ - Datasheet
MBA
Category Information

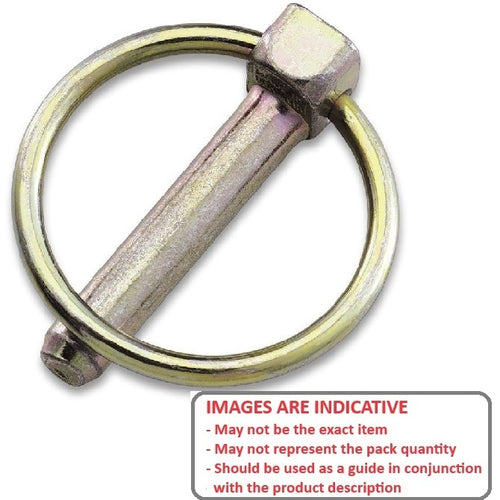

Pins - Clik - Carbon SteelCarbon Steel Clik Pins. Self locking ring snaps down to hold them securely in place. Easy grip ring for quick removal. Also known as a lynch pin.
- Pin is made from carbon steel and heat treated to RA 50-60.
- Ring is hot drawn spring steel with hardness of RC 47-48.
- Zinc plated.

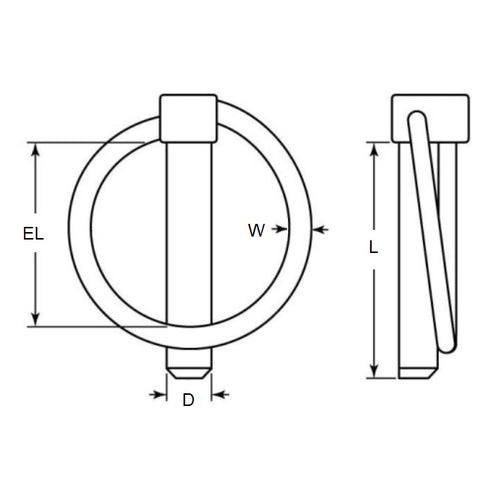

Product Data
- Pin Diameter
:
4.76
mm
(Equiv. 0.187 in.) - Grip Length
31.8
mm
(Equiv. 1.252 in.) - Wire Thickness
3.0
mm
(Equiv. 0.118 in.) - Finish Zinc Plated
- Material Carbon Steel Zinc Plated Heat Treated
Product Compliance and Data
Additional Resources
Cross References
- CLP580
- CLP-580
