BLP-048-0206-CZ - Datasheet
MBA
Category Information

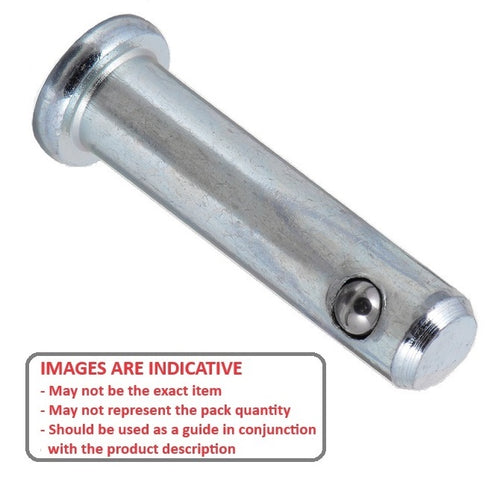

Pins - Clevis - Self Locking Zinc PlatedSelf Locking Zinc Plated Clevis Pins. Inexpensive ball lock pin type. No need for cotter pins.
- Self locking and reusable with a spring loaded ball lock
- Zinc plated low carbon steel with stainless steel ball
Product Data

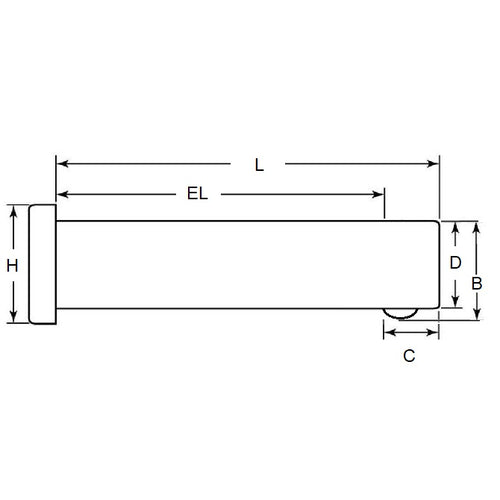

- Nominal Pin Diameter (A)
:
4.76
mm
- 0.04 / - 0.16
(Equiv. 0.187 in.) - Grip Length (EL)
20.64
mm
+ 0.51 / - 0.00
(Equiv. 0.813 in.) - Nom. Length (L)
25.40
mm
+ 0.51 / - 0.00
(Equiv. 1 in.) - Locking Ball to End (C) 4.76 mm
- Open Ball Distance (B) 0.38 to 0.51 mm
- Material Zinc Plated Low Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90156A204
- NoCor CLPCZ-0187-1000
- CLP-1201
- CLPCZ01871000
- CLP1201
- BLP0480206Z
