BLP-048-0318-MRE-S4 - Datasheet
MBA
Category Information

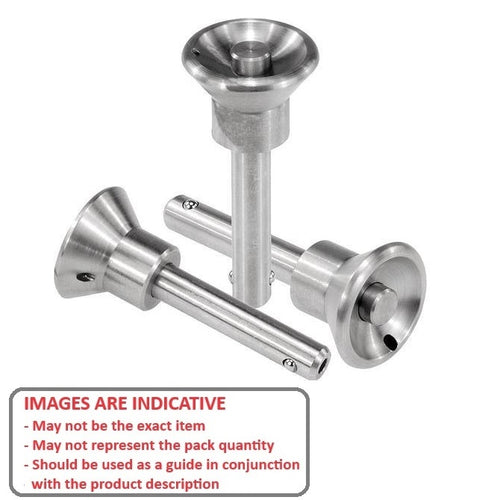

Pins - Ball Lock - Marine Style - Recessed HeadRecessed Head Marine Style Ball Lock Pins. Quick release. Provide positive locking for all types of applications and equipment. Body, head and all internal components are made from corrosion resistant stainless steel.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- 303 Stainless shanks and heads
- 300 Grade Stainless Components
- 440C Stainless Balls

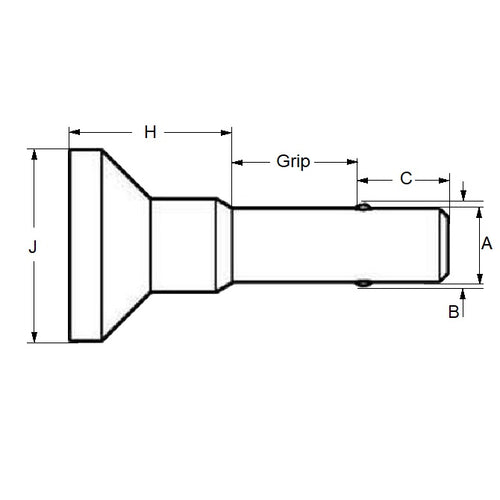

Product Data
- Nominal Diameter
:
4.76
mm
(Equiv. 0.187 in.) - Grip Length (B)
31.75
mm
(Equiv. 1.25 in.) - Pin Material Grade 304 Stainless Steel
- Locking Ball to End (C ) 6.60 mm
- Open Ball Distance (B) 5.59 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- SMP-415
- SMP415
