BLP-048-0254-BT-S17 - Datasheet
MBA
Category Information

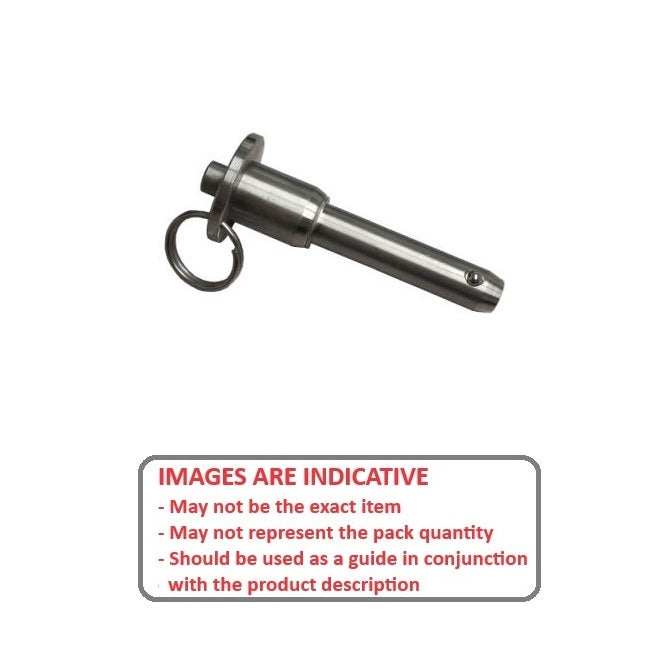

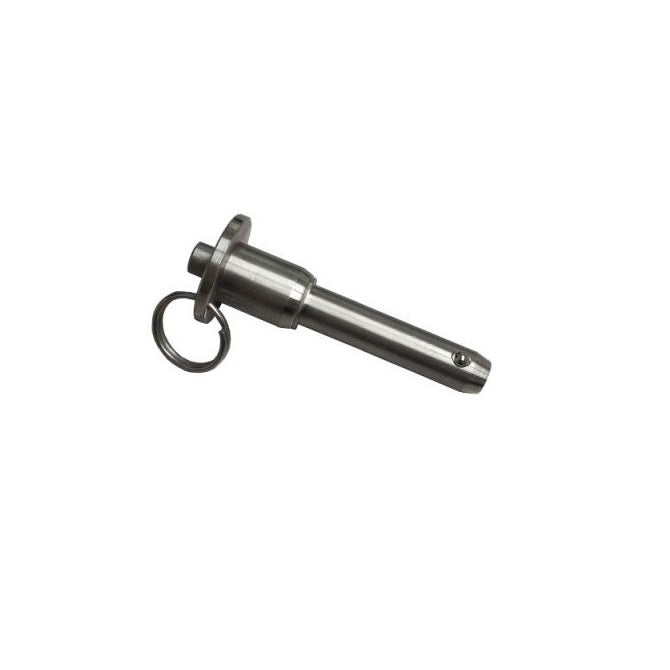

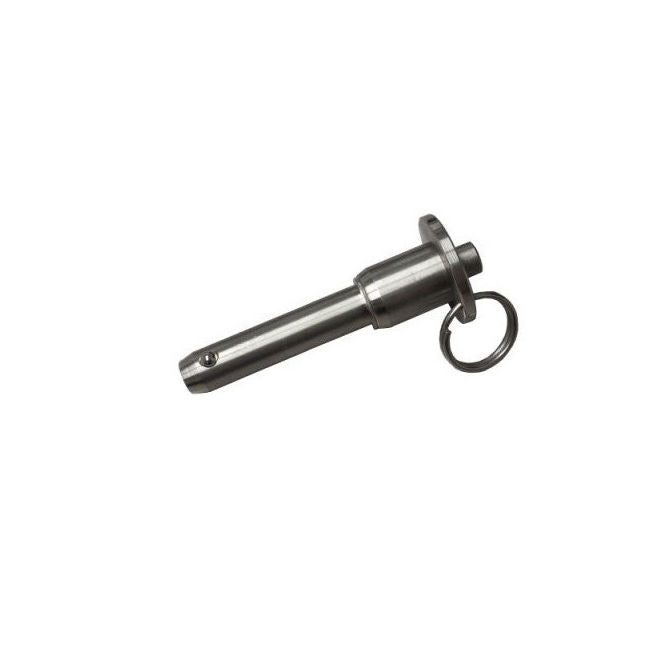

Pins - Ball Lock - Button Handle - Industrial Stainless SteelIndustrial Stainless Steel Button Handle Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- 300 Grade Stainless Components
- 440C Stainless Balls
Product Data

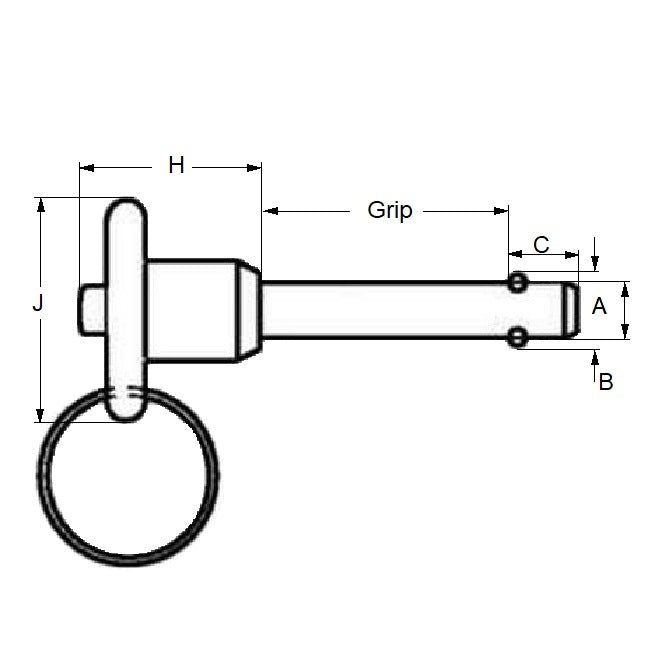

- Nominal Diameter
:
4.76
mm
(Equiv. 0.187 in.) - Grip Length (B)
25.40
mm
(Equiv. 1 in.) - Pin Material Grade 17-4 PH Stainless / Aluminium Handle
- Locking Ball to End (C) 6.60 mm
- Open Ball Distance (B) 5.58 mm
- Ring Diameter (F) 26.92 mm
- Handle Length (R) 18.54 mm
- Pull Out Strength 90.00 Kg
- Calc. Double Shear Strength 2330 Kg
- Max. Diameter 4.78 mm
- Min. Diameter 4.76 mm
- Material Stainless Steel 17-4 PH with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- 90985A102
- BLBS001
- BLBS-001A
- BLBS001A
