PLBP-040-050-PP-005 - Datasheet
MBA
Category Information

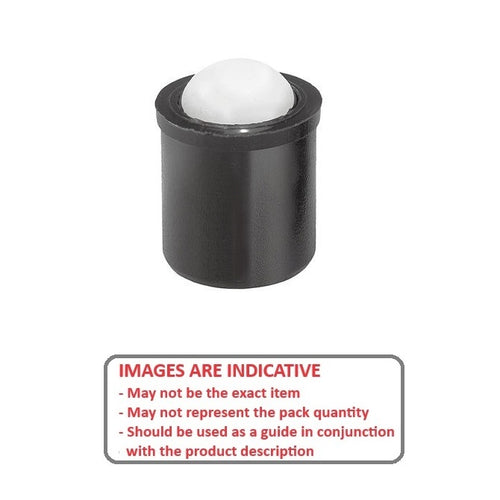

Plungers - Ball Push Fit - Plastic Body - Plastic BallPlastic Ball Plastic Body Ball Push Fit Plungers. Unthreaded. Plastic body and ball.
- Body BSD: Pom (Delrin) BSD-SS: W.-Nr 1.4305 (303) Stainless Steel.
- Sleeve BSD: Thermoplastic BSD-SS: Stainless Steel.
- Ball: W.-Nr 1.4034 (420) Stainless Steel.
- Spring: W.-Nr 1.4310 (301) Stainless Steel.
- Surface Finish BSD: Ball hardened, bright BSD-SS: Bright.
Product Data
- Body Diameter (D)
:
4.00
mm
(Equiv. 0.157 in.) - Length (L)
5.00
mm
(Equiv. 0.197 in.) - Initial Pressure (F1) 3.00 N
- Final Pressure (F2) 5.00 N
- Ball Diameter (D1) 3.00 mm
- Ball Height (H) 0.90 mm
- Shoulder Diameter (S) 4.6 mm
- 4.600
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-PFPPN4-20P
- CPFPPN420P
