DVAB4-ST-095-ADJ-303 - Datasheet
MBA
Category Information
Dual Vee - Adaptor BushingsAdaptor Bushings Dual Vee. Vee grooved track roller bushings.
- Stationary bushings have a concentric hole
- Adjustable bushings have an eccentric hole allowing positioning of the guide wheel as the bush is turned
Product Data

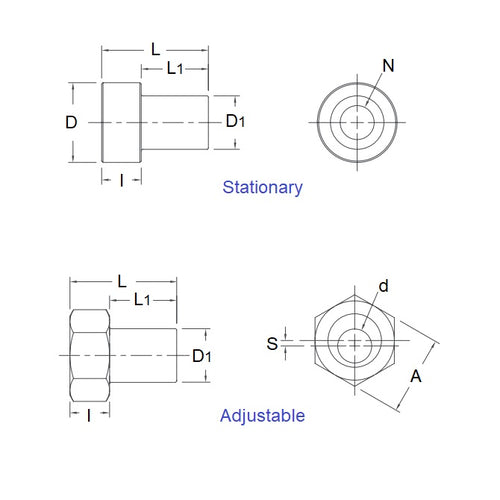

- Bushing Size : 4
- Overall Length (L)
30.000
mm
+ 0.000 / - 0.100
(Equiv. 1.181 in.) - Head Width (l)
11.100
mm
+/ - 0.03
(Equiv. 0.437 in.) - Shank Diameter (D1) 15.000 mm + 0.000 / - 0.030
- Diameter / Hex (D or A) 22.000 mm
- Inside Diameter (N or d) 9.525 mm + 0.050 / - 0.000
- Offset Value (s) 1.520 mm

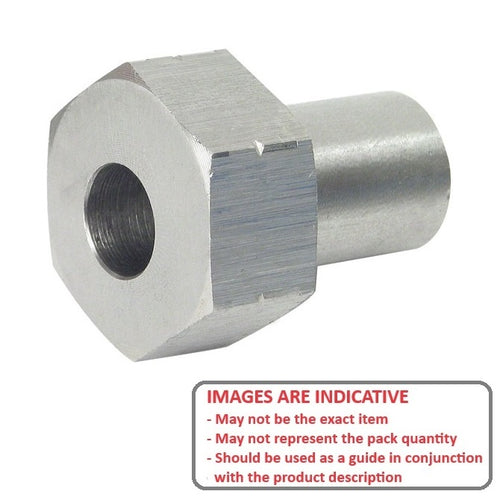

- Bush Type Adjustable
- Head Configuration Hexagon
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- Dual Vee B4X-SS
