LCB-0030-006-007-SP-S440 - Datasheet

MBA

Category Information

Linear - Ball Bearings - Miniature Super High Precision

Miniature Super High Precision Ball Bearings Linear. High Precision Corrosion Resistant Miniature Linear Bearings.

  • High Precision Swiss Made, Accurate Guiding, Smooth Running.
  • High Load Capacity.
  • Tolerances --- d (+0.008 / -0.000 mm) D (+0.000 / -0.010 mm).
  • Recommended Outer ring fitted with interferance of 1-3 Microns or retained by Circlips.
  • Shafts (not included) should be 60-63 Rockwell C hardness with tolerances +0.000 / -0.006 mm.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Nominal Shaft Size (T) : 3.000 mm
    (Equiv. 0.118 in.)
  • Nom. Outer Diameter (D) 6.000 mm
    (Equiv. 0.236 in.)
  • Length ( L / l ) 7.000 mm
    (Equiv. 0.276 in.)
  • Static Load 23 N
  • Ball Diameter 0.794 mm
  • Material Stainless Steel AISI 440C
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • L306XL23ar
    • L 306X-L23ar
    • L306X-L23ar
    View full details

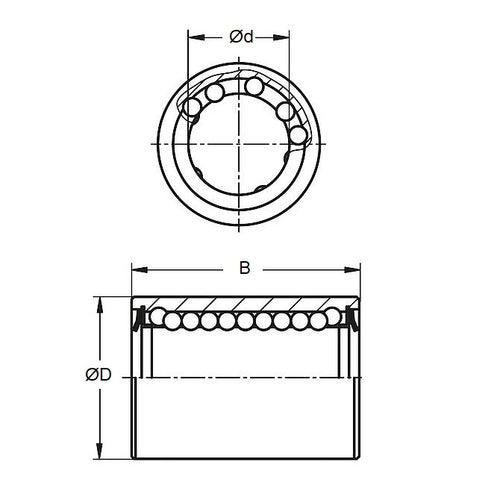

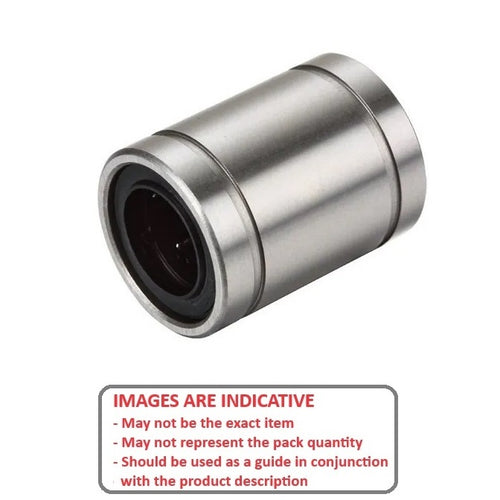

    LCB-0030-006-007-SP-S440DiagramLCB-0030-006-007-SP-S440Image
