CS-3810-9144-41-M - Datasheet

MBA

Category Information

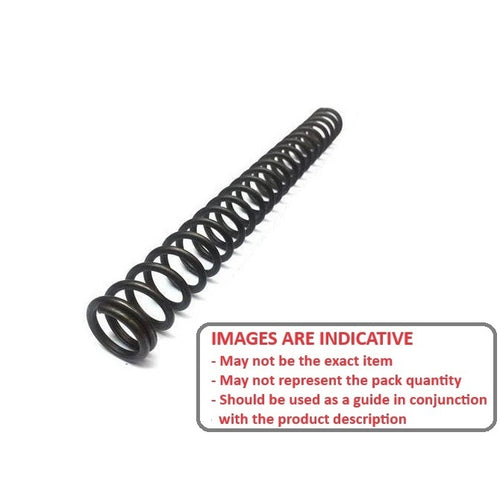

Springs - Compression - Music Wire

Music Wire Compression Springs. Carbon spring steel selection. Standard springs may or may not be suplied with ground flush ends.

  • Helical coil spring designed to resist compressive forces, meaning it shortens in length when pushed or squeezed.
  • Used in a wide range of applications, such as pens, door hardware, machinery in automotive, aerospace, and manufacturing industries.
  • This category includes short and long lengths.
  • If the end type is important to your application please contact us for more information or a special quote.

Product Data

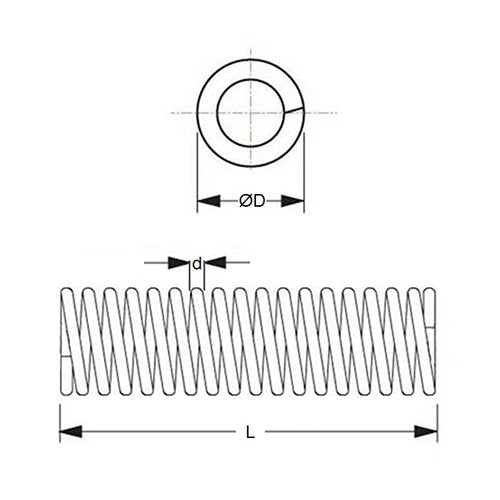

  • Spring OD (D0) : 38.10 mm
    (Equiv. 1.5 in.)
  • Free Length (L0) 914 mm
    (Equiv. 35.984 in.)
  • Wire Diameter (d) 4.11 mm
    (Equiv. 0.162 in.)
  • Rate (P/f) 36.4 N/mm
  • Approx. ID 29.9 mm
  • End Type Closed
  • Material Music Wire
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 9662K36
  • S-230
  • S230
