CSC-381-051-13-M - Datasheet
MBA
Category Information

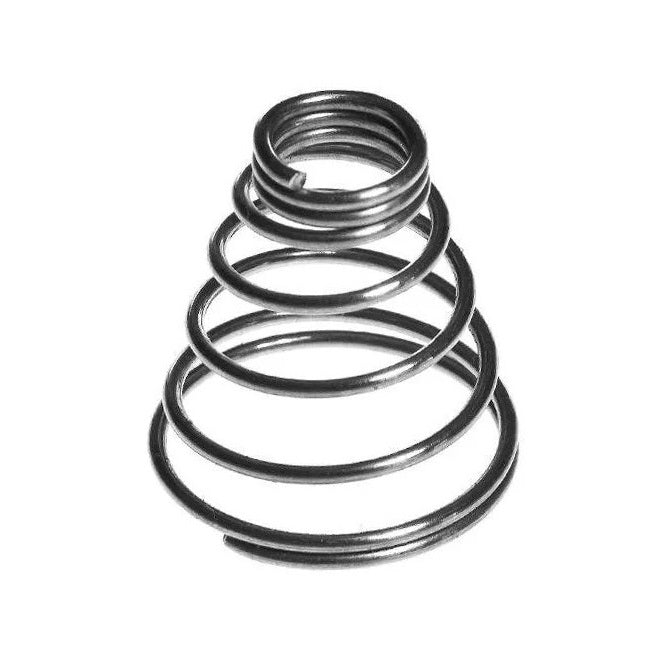

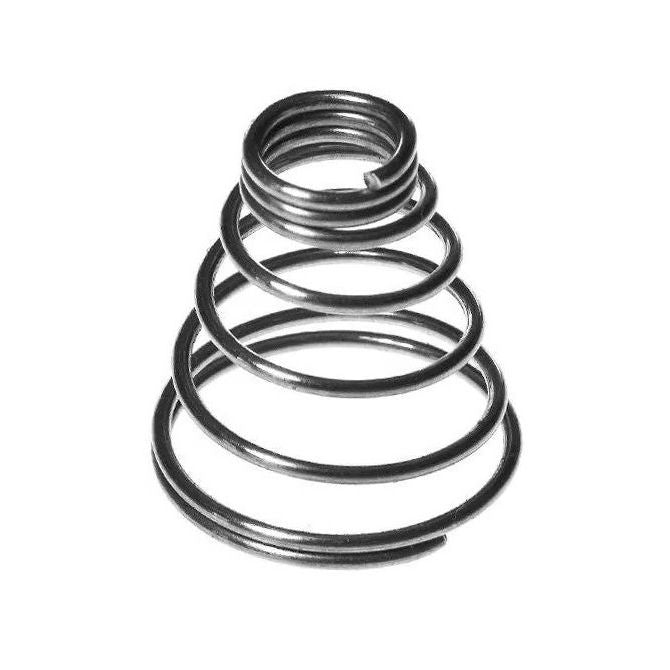

Springs - ConicalConical Springs. Conical 302 Stainless steel springs
- Solid height lower than a standard compression spring due to the conical shape
- Ends are closed
- Starting rate is the same as the kg/mm rate
Product Data
- Large End OD
:
38.10
mm
(Equiv. 1.5 in.) - Free Length
50.8
mm
(Equiv. 2 in.) - Small End OD
25.4
mm
(Equiv. 1 in.) - Inside Diameter Clearance 22.9 mm
- Wire Thickness 1.27 mm
- Rate 0.0 kg/mm
- Inside Diameter 22.9 mm
- Material Carbon Spring Steel Music Wire
Product Compliance and Data
Additional Resources
Cross References
- CX-48
- CX48
